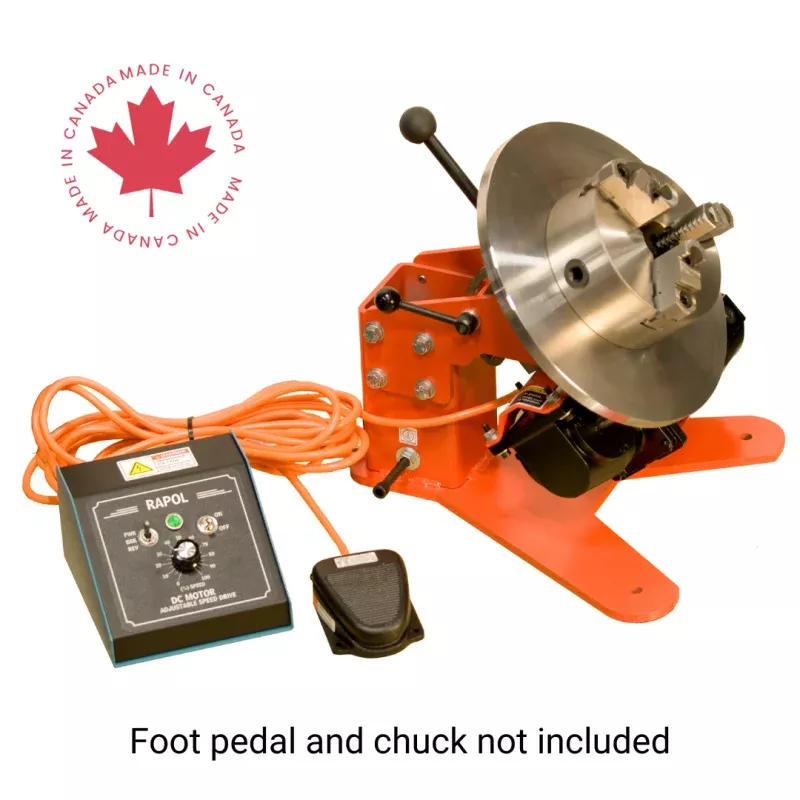

Rapol 150 lb Bench Top Welding Positioner (BP-150)

Rapol Bench Top Welding Positioner

The BP-150 is designed for rotation of lighter work pieces, it offers a robust solution for consistent holding and rotating of parts in your welding workstation. The BP-150 positioner offers manual tilt adjustment, high frequency protection, and a heavy-duty foot control switch The capacity is 200lbs in the horizontal position and 150lbs in the vertical position.

Made in Canada

• On/Off Foot Switch not included – See this link
• Chuck not included –See Welding Positioner Chucks

Features

• Control The solid state (SCR) DC control with dynamic brakingvariable speed table rotationmotor system will always provide proper weld speed settings and steady rotation rates.Rotation speeds are electronically controlled in both forward and reverse direction.
• Drive Heavy-duty self-locking worm gear reducer on rotation drive positively prevents the load from moving unless the worm gear is revolving.
• Electrical System The electrical control components are housed in an easy access cabinet in the front of the machine. Components and wiring are neatly laid out and labeled for easy troubleshooting.
• Control Panel User friendly and positioned on the back of the machine.
• CSA Certified

Specifications:

Load Capacity 200 lbs (at 0) Load Capacity 150 lbs (at 90) Table Style

Disc Table with Pre-Drilled Holes

Table Height 5 Rotation Speed

0.2 – 10 RPM OR 0.1 – 5 RPM

Rotation Motor 1/8 HP DC Tilt Range 0 – 90 Degrees Voltage 115V 60 Hz

Download User Manual

Optional Extras: Contact [email protected] for pricing

• On/Off Foot Switch
• Variable Speed Foot Switch
• Digital Display (Reference)
• 14 NPT Spindle Purge Hole

*Heavy item – additional shipping charges apply at checkout
