Product Overview

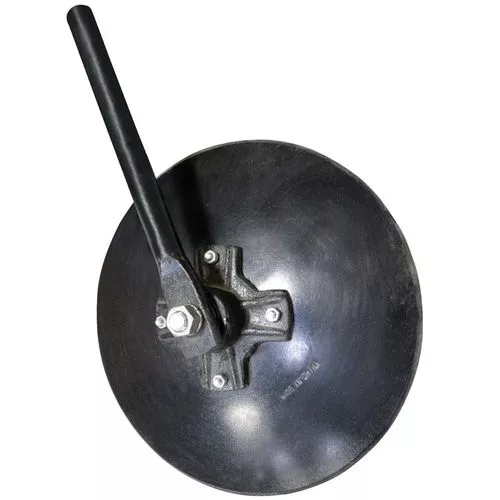

The 16 inch disc hiller can be used in a series of two, attached to a tool bar to create raised garden beds or cover a crop such as potatoes. Adjust the width of the hiller discs for your specific requirements. The 16 inch steel disc is attached with a Blanton style hub that has a four bolt mounting pattern with 5 inches on center spacing. Each Blanton hub is assembled with two bearings to help resist wear and tear while building your garden beds.
Specifications
- Disc Hiller
- 16 In. Disc Hiller, 16 In. Shank
- Replacement bearings use 17849 (requires 2)
- Hub style: Blanton with 4 holes
- Shank diameter: 1-3/16 In.
- If mounting on a 1-3/8″ tool bar use clamp 109931 and wedge bolt 85136
| Product Number |
Ref | Description | Qty Required |
|---|---|---|---|
| 87728 | 1 | 12″ Blade 3 MM | 1 |
| 25900 | 1 | 14″ Blade 3 MM | 1 |
| 25901 | 1 | 16″ Blade 3 MM | 1 |
| 11679 | 2 | Hub – No Bearings | 1 |
| 11678 | 3 | 16″ Shank (1-3/16″ rd) | 1 |
| 30336 | 3 | 22″ Shank (1-3/16″ rd) | 1 |
| 17849 | 4 | 204-BBAR | 2 |
| 27936 | 5 | Snap Ring | 2 |
| 13275 | 6 | 5/16″ Carriage Bolt | 4 |
| 13104 | 7 | 5/16″ Hex Nut | 1 |
| 13094 | 8 | 5/16″ Lock Washer | 4 |
| 29842 | 9 | 3/4″ x 3-1/2″ Thin Head Bolt | 1 |
| 13099 | 10 | 3/4″ Lock Washer | 1 |
| 13109 | 11 | 3/4″ Hex Nut | 1 |
| 33955 | 12 | 3/4″ Flat Washer | 1 |
| n/a | Spacer | 1 |
