Product Overview
Specifications:

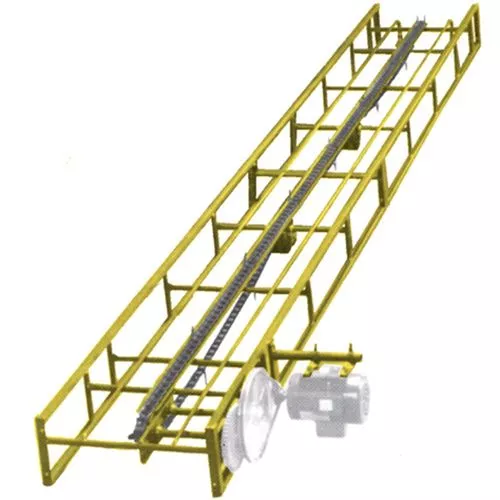

- Bale Conveyor
- Bale elevator system component
- 16 feet long
- Constructed of 1 inch high-strength square tubing
- 18 gauge steel construction
- Comes with heavy-duty No. 55 conveyor chain, for replacement use ASC 11371
- Drag links use ASC 29859
- Use ASC 20935 for replacement belt
- For electric motor use ASC 18719
- Wiring by a certified electrician is required please refer to owner’s manual
- For motor pulley use ASC 20816
- Raised links every 24 inches
- Bronze pillow-block bearings on drive unit
- Greasable bronze-bushing idler sprockets
- No. 40 roller chain final drive
- Seams electrically wire welded
- Universal motor mount, adjustable for leveling and belt adjustments
- 21 inches between inside side rails
- 23-1/2 inches outside to outside rail
- Side rails extend 3 inches above conveyor
- Conveyor frame 9-1/2 inches tall
- Can operate inclined or horizontally
- Electric motor and motor pulley are not included.Motor size based on conveyor handling design
- Weight : 153 lbs.
Additional bale conveyor components can be purchased separately. Use ASC 19595 4 foot or ASC 19596 8 foot bale conveyors to extend and customize your handling system.Also, additional No. 55 chain, ASC 11371, and drag links, ASC 29859, can be added to your bale conveyor system.
