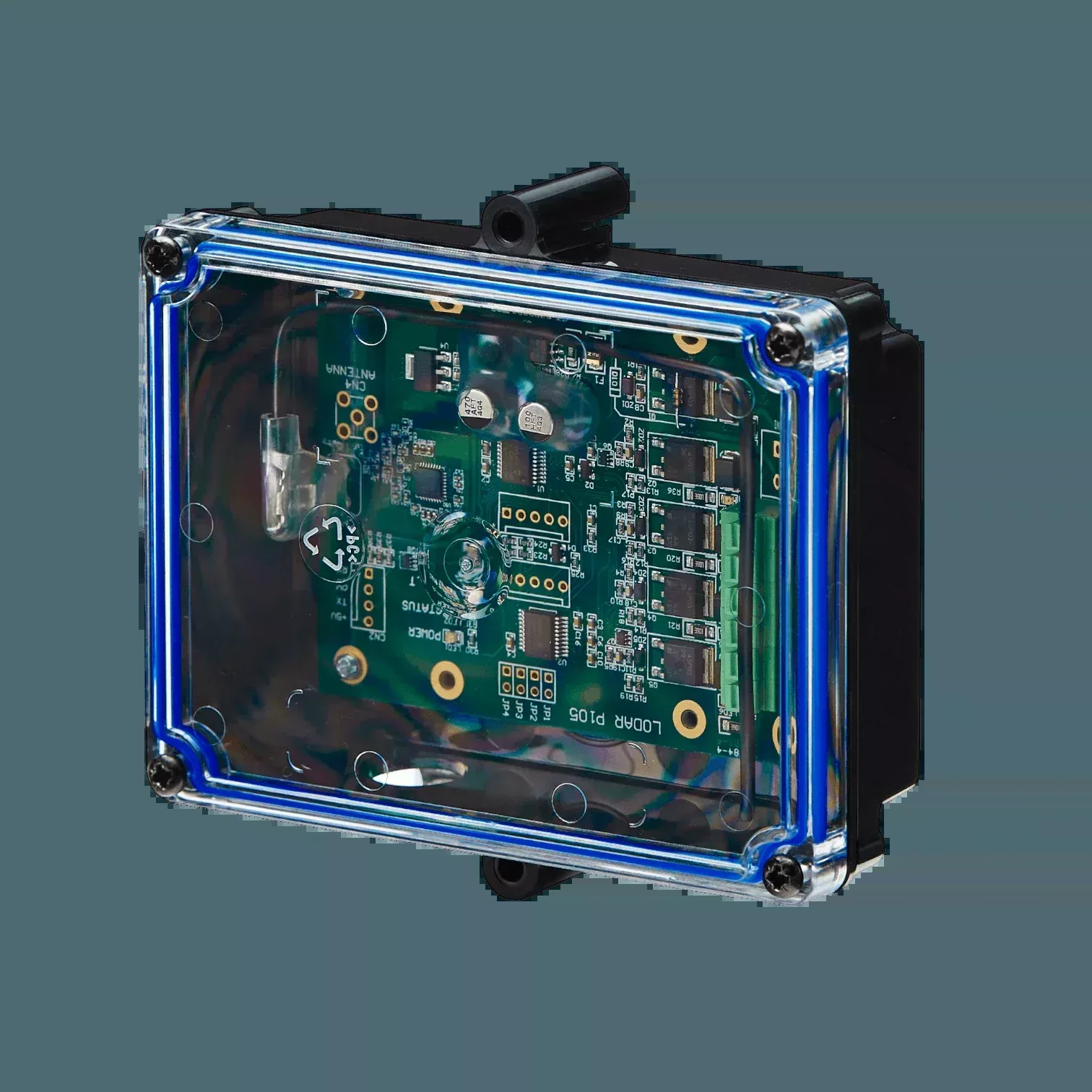

This is a replacement Mini FET receiver for Lodar 11 Series wireless control systems — 4-function, compact FET (solid-state) output switching rated to 3 A per output. The receiver mounts on the equipment, receives the signal from the transmitter, and switches the output functions. Includes a master output — an additional output that fires on every function: once wired in, it energizes whenever any function is operated, for equipment that must run in conjunction with the controls (a hydraulic power unit running while a lift function operates, a safety light while winching).
Replacement part for an existing Lodar 11 Series wireless system — a receiver is not a standalone product. It pairs with a matching transmitter on the same series and function count.
What’s different about the 11 Series Mini receiver?
The 11 Series is Lodar’s compact (Mini) receiver platform — a smaller-footprint FET receiver, rated to 3 A per output on a narrow-band RF link, for installations where the standard 9 Series receiver box won’t fit. It is its own platform; an 11 Series receiver pairs with an 11 Series system, not a 9 Series one.
- 4-function Mini FET receiver
- For Lodar 11 Series wireless control systems
- Master output — an additional output that fires on every function
- DC FET output switching · 3 A · 12/24V DC · Narrow Band · compact (Mini) footprint
- Lodar SKU 11RX04
This is a replacement part — it goes on the 4-function 11 Series wireless system. See the complete 4 Function Mini Wireless Control System or 4 Function Standard Wireless Control System. Pair it with the matching 4 Function transmitter on the same system.
