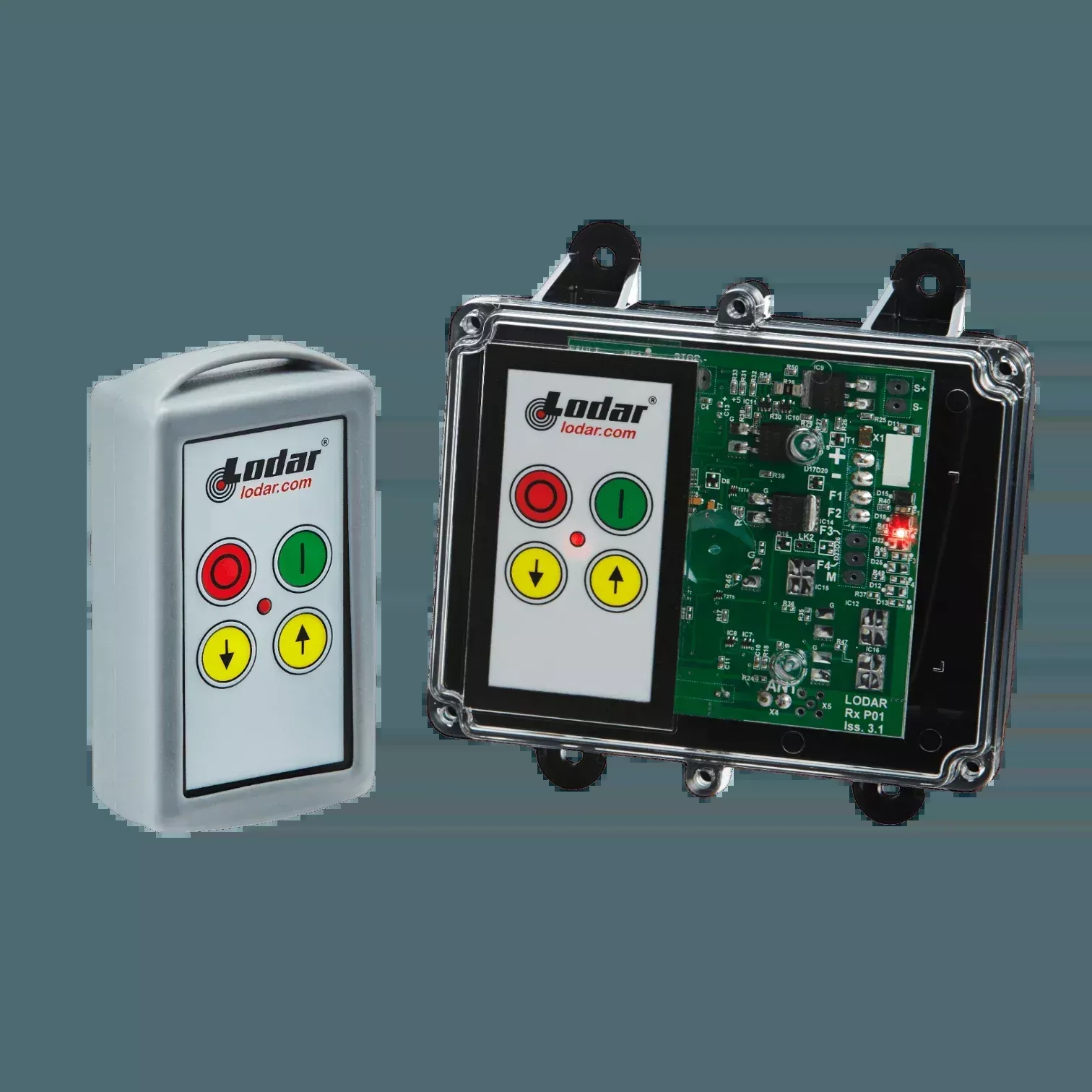

Complete plug-and-play wireless control system – includes the Standard handheld transmitter and the FET receiver, coded together at the factory and ready to wire to your equipment. Operates 2 functions on the Lodar 9 Series.
The 2 Function Lodar Standard Wireless System (92100K) gives you 2-function wireless control with a 150 ft (45 m) range. DC FET output switching, 10 A per output (15 A system total), 12/24V DC. This version has no master output. Choose a master-output model if you need an extra output that fires alongside every function – for example, an HPU that must run during a lift.
What does the keypad receiver add?
The keypad receiver lets you operate the 2 functions directly at the receiver with a built-in keypad, as a backup to the wireless handset. Confirm your power supply: this system runs on 12/24V DC. Each FET output is rated to 10 A, with the system rated to 15 A total across all outputs. Run several heavy functions at once and the combined draw can reach that 15 A ceiling, where the overload protection trips to protect the board. Solid-state switching means there are no mechanical relay contacts to wear or arc. It is the current standard across the Lodar line — choose it for functions that draw more than the 5 A per output a mechanical relay handles.
- 2 functions of wireless control
- Standard transmitter – IP 54 rated
- FET receiver – solid-state DC switching, 10 A per output (15 A system total), 12/24V DC, wide band, IP 65 rated
- 12/24V DC operating voltage
- 150 ft (45 m) operating range
- Keypad receiver – operate functions at the receiver as a wired backup
- No master output
- Lodar SKU 92100K
Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.
Want a different form of the same 2-function Lodar system? Compare the 2 Function Lodar Stainless IP Wireless System or 2 Function Lodar Standard Wireless System. Replacement handsets and receivers are sold separately.
