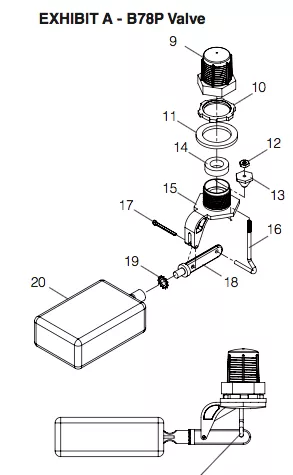

Valve and Float Assembly contains reference numbers 9-20 on the parts diagram (1 of Each below):
9 – A15P – Hex Screen Filter, Poly
10 – B83 – 3/4″ Conduit Locknut, Zinc
11 – A19 – 1-1/16″ Washer, Fiber
12 – OF51 – 6-32 Hex Machine Nut, Brass
13 – B80P – Hex Cone, Poly
14 – B82 – 1/2″ ID x 7/8″ OD Washer, Rubber
15 – B84P – Valve Body, Poly
16 – 3B1 – Hook Rod, Brass
17 – B100 – 1/8″ x 1″ Cotter Pin, Brass
18 – W80B11P – Float Arm, Poly
19 – OF116 – 1/4″ External Tooth Lockwasher, SS
20 – OP346 – Float, Poly
