Description:

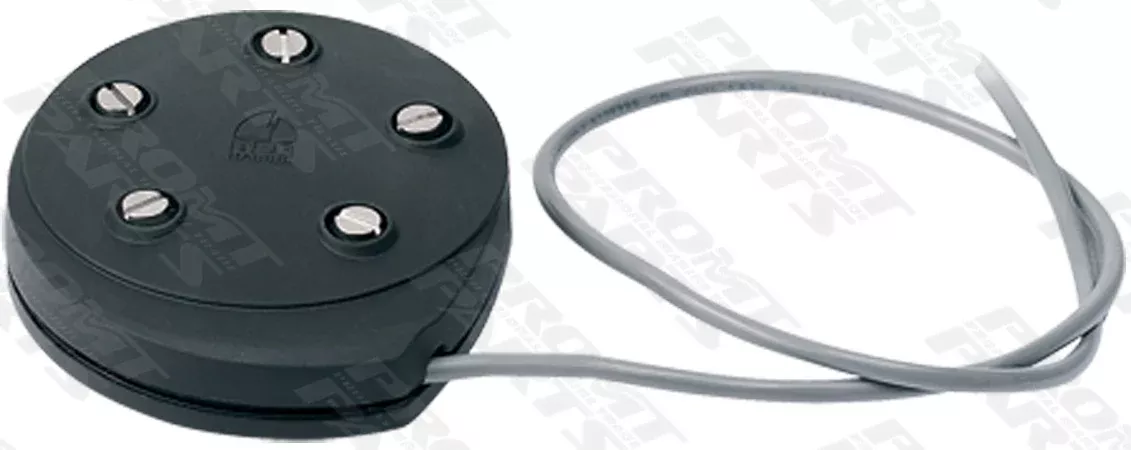

Ultrasonic Tank Sender—No Moving Parts• Handles common outputs – 240-33, 10-180, Vetus 10-300 for analog resistivegauges (not suitable for resistive digital gauges or CAN systems) and 0-5V tanksfrom BEP, Teleflex, Faria, VDO and many other popular instrument brands.(When connecting to non-adjustable gauges the TS1 must be pre-calibrated)• Low Profile Design and standard SAE 5 hole mounting pattern,allowing it to be retrofitted to practically all other sender brands• Can be set for tank dimensions via computer using BEP Marine’sproprietary TS1 software, avoiding experimental tank filling on site• Connects directly to the DC systems monitors (80-600-0021-00 &80-600-0022-00 page 88) when configured to a 0-5V output• Is set for 0-2000 mm depth off the shelf (not suitable for tankdepths less than 200 mm) 8″• Operating voltage: 10–32V• Current draw: 25 mA with 5V gauge output• Measurement method: Acoustic sonic measurement• Tank depth: 0–6.5 ft (2000 mm)• Accuracy Distance: 0–6.5 ft (2000 mm) at 2 mm accuracy• Environmental temperature: 39.2–149°F (4–65°C)• Chemical resistance: Petrol, diesel, water, toilet chemicals
