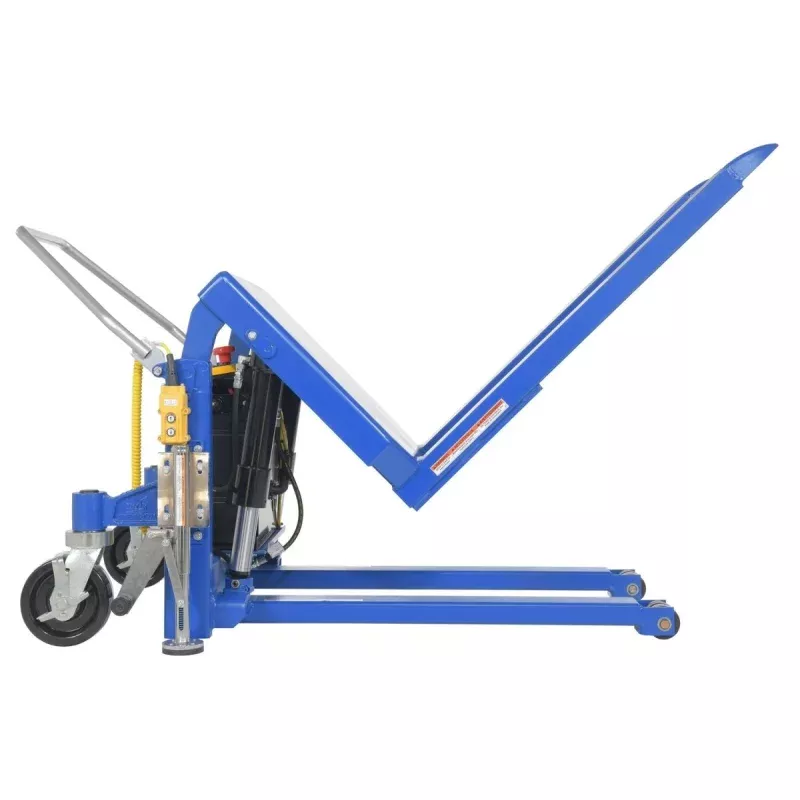

Tilt Master & Tilt Master Straddle

Lift and position filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty Tilt Master

These 90 degree tilters will function as a transporter by moving completed products from work station to work station without waiting for a fork truck.

An ergonomic handle comes standard for quick and easy maneuverability. Unit has a thin profile to allow the user to get as close to the load as possible. Units roll easily on 8″ x 3″ phenolic steering wheels. Floor lock standard on non PTDS units. Series TM is designed to be used with open bottom pallets or skids only. The Tilt Master Straddle units, series TMS, can be used with virtually any kind of container or pallet. Units come standard with a hand pendant control on an 8 foot coil cord.

Reduce worker fatigue and injury with the Portable Traction Drive Power Option. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. maximum speed is 2.5 m.p.h.

Three power options to choose from:

• Suffix -AC is 115V, 1 phase power with a push-button hand control.
• Suffix -DC includes one (1) 12V battery DC series, push-button hand control, on-board charger and battery charge indicator gauge.
• DC-PTDS includes two (2) 12V batteries, Combination throttle / direction butterfly style controller, an adjustable steering yoke, and an auto reverse emergency ‘belly switch’
• Suffix -DC-FC includes one (1) 12V battery, foot control, on-board charger and battery charge indicator gauge.
• Suffix -AIR features reciprocating air/oil power with a heel/toe foot treadle control. (Filter-Regulator-Lubricator required)

Applications

• Tilts products from ground level to a comfortable operator working height
• Doubles as a pallet truck and a portable tilt table

Tilt Master (TM) or Tilt Master Straddle (TMS)?

Tilt Master – TM Series
Works With Skids Only

---

Tilt Master Straddle – TMS Series
Works With Skids and Pallets Model Image PDFs Description * Net Wt.
(lbs) TM-20-AC 1 Year Limited Warranty TILT MASTER AC POWER & 2000 LB CAP Uniform Capacity (lb.): 2000 646 TM-20-AIR 1 Year Limited Warranty TILT MASTER AIR/OIL, RECIPR, 2000 LB Uniform Capacity (lb.): 2000 621 TM-20-DC 1 Year Limited Warranty TILT MASTER DC POWER 2000 LB CAP Uniform Capacity (lb.): 2000 680 TM-20-DC-FC 1 Year Limited Warranty TILT MASTER DC FOOT CONTROL 2000 LB Uniform Capacity (lb.): 2000 733 TM-20-DC-PTDS 1 Year Limited Warranty TILT MASTER DC POWER TRACTION 2000 LB Uniform Capacity (lb.): 2000 827 TM-40-AC 1 Year Limited Warranty TILT MASTER AC POWER & 4000 LB CAP Uniform Capacity (lb.): 4000 710 TM-40-AIR 1 Year Limited Warranty TILT MASTER AIR/OIL, RECIPR, 4000 LB Uniform Capacity (lb.): 4000 658 TM-40-DC 1 Year Limited Warranty TILT MASTER DC POWER 4000 LB CAP Uniform Capacity (lb.): 4000 688 TM-40-DC-FC 1 Year Limited Warranty TILT MASTER DC FOOT CONTROL 4000 LB Uniform Capacity (lb.): 4000 699 TM-40-DC-PTDS 1 Year Limited Warranty TILT MASTER DC POWER TRACTION 4000 LB Uniform Capacity (lb.): 4000 850 TM-60-AC 1 Year Limited Warranty TILT MASTER AC POWER & 6000 LB CAP Uniform Capacity (lb.): 6000 739 TM-60-AIR 1 Year Limited Warranty TILT MASTER AIR/OIL, RECIPR, 6000 LB Uniform Capacity (lb.): 6000 851 TM-60-DC 1 Year Limited Warranty TILT MASTER DC POWER 6000 LB CAP Uniform Capacity (lb.): 6000 707 TM-60-DC-PTDS 1 Year Limited Warranty TILT MASTER DC POWER TRACTION 6000 LB Uniform Capacity (lb.): 6000 873 TMS-20-AC 1 Year Limited Warranty TILT MASTER STRAD AC POWER & 2000 LB CAP Uniform Capacity (lb.): 2000 989 TMS-20-AIR 1 Year Limited Warranty TILT MASTER STRAD AIR/OIL RECIPR 2000 LB Uniform Capacity (lb.): 2000 881 TMS-20-DC 1 Year Limited Warranty TILT MASTER STRAD DC POWER 2000 LB CAP Uniform Capacity (lb.): 2000 922 TMS-20-DC-PTDS 1 Year Limited Warranty TILT MASTER STRAD DC POWER TRACTION 2000 Uniform Capacity (lb.): 2000 1083 TMS-40-AC 1 Year Limited Warranty TILT MASTER STRAD AC POWER & 4000 LB CAP Uniform Capacity (lb.): 4000 953 TMS-40-AIR 1 Year Limited Warranty TILT MASTER STRAD AIR/OIL RECIPR 4000 LB Uniform Capacity (lb.): 4000 893 TMS-40-DC 1 Year Limited Warranty TILT MASTER STRAD DC POWER 4000 LB CAP Uniform Capacity (lb.): 4000 968 TMS-40-DC-PTDS 1 Year Limited Warranty TILT MASTER STRAD DC POWER TRACTION 4000 Uniform Capacity (lb.): 4000 1122 TMS-60-AC 1 Year Limited Warranty TILT MASTER STRAD AC POWER & 6000 LB CAP Uniform Capacity (lb.): 6000 978 TMS-60-AIR 1 Year Limited Warranty TILT MASTER STRAD AIR/OIL RECIPR 6000 LB Uniform Capacity (lb.): 6000 967 TMS-60-DC 1 Year Limited Warranty TILT MASTER STRAD DC POWER 6000 LB CAP Uniform Capacity (lb.): 6000 998 TMS-60-DC-PTDS 1 Year Limited Warranty TILT MASTER STRAD DC POWER TRACTION 6000 Uniform Capacity (lb.): 6000 1161
