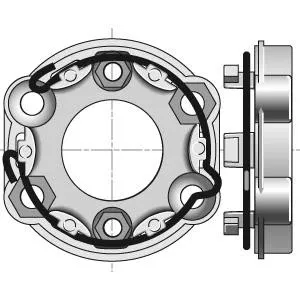

2 holes for M6 Hex or 1/4 – 20 flat head screw on 48mm diameter.
2 holes for M8 hex screw on 60mm diameter.
2 countersunk holes for M8 screw on 60mm diameter.
Lateral space requirement for installation: 27mm.
Maximum motor torque – 85 Nm or 100 Nm when used with locking spring ring Cat. No. 4350027 (9910002), and 5/16 – 18 or M8 bolts without molded nuts.
Maximum system load – 200 Kg. (441 Lbs.) only when used with locking spring ring Cat. 4350027 (9910002)
