Product OverviewSpecifications

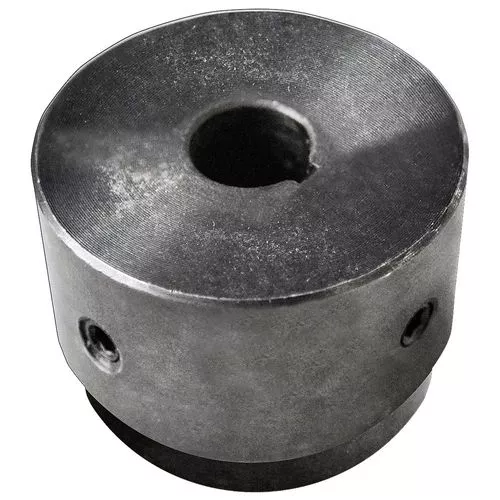

- Series W – Weldasprocket hub
- Part number: 0002-0008
- 1/2″ diameter bore
- Weldasprocket hubs series W
- Large ” square keyway
- Length: 1-7/16″
- Small end diameter: 1-5/8″
end diameter: 1-3/4″
| Letter | V Hub – Fixed Bore | W Hub – Fixed Bore | X Hub – Fixed Bore |
|---|---|---|---|
| A | 1-1/8″ | 1-5/8″ | 2″ |
| B | 1-7/16″ | 1-3/4″ | 2-1/4″ to 2-1/2″ |
| C | 7/16″ | 7/16″ | 7/16″ |
| D | 3/4″ | 1″ | 1″ |
| E | 1-3/16″ | 1-7/16″ | 1-7/16″ |
