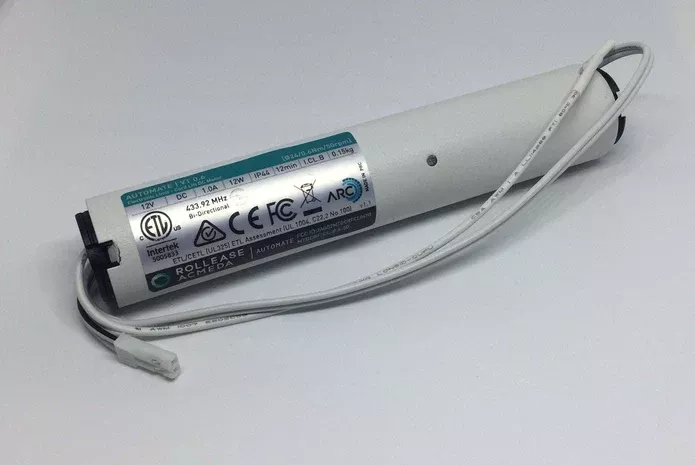

Rollease Cord Lift Motor
• The default speed is 50rpm.
• The speed control feature allows two slower speeds to be selected if required.
Product Sheet
MTDCRF-CL-0.6-50
| SKU | MTDCRF-CL-0.6-50 |
|---|---|
| Motor Type | DC battery, cord lift (for cord-operated roller and Roman shades) |
| Torque | 0.6 Nm |
| Default Speed | 50 RPM |
| Speed Settings | 3 (50 RPM default + 2 slower speeds) |
| Protocol | ARC (Automate RF Control) — compatible with all ARC remotes and hubs |
| Adapter Kit | MTAD-CLHRSS38KT required (sold separately) |
| Compatible Remotes | Paradigm, Push 5, Push 15, Push One — all ARC remotes |
| Compatible Hubs | Pulse 2 (MT02-0401-067001), Pulse PRO (MT02-5401-050001) |
The Cord Lift DCRF Motor converts existing cord-operated roller shades or Roman shades to battery-powered motorized operation using the ARC RF protocol. The Motor Adapter Kit (MTAD-CLHRSS38KT) is required for installation and sold separately. Once installed, the shade pairs and operates like any other ARC motor — controllable via remote or hub.
