Rollease DC Tubular motor with RF control. MTDCRF45-10.
- Recommended max shade size 144″x144″
- Leveling Control
- Simple limit setting and adjustment
- Favorite position
- 3 operational speed settings available
- 2-way RF communication
- New ARC protocol for simple programming
Product sheet
MTDCRF45-10
| SKU | MTDCRF45-10 |
|---|---|
| Motor Diameter | 45mm |
| Torque | 10 Nm |
| Power | 12V DC hardwired (requires power supply or panel) |
| Max Shade Size | 144″ × 144″ |
| Protocol | ARC (Automate Radio Communication) — 2-way RF |
| Compatible Systems | R-Series (large tube applications) |
| Power Supply Required | MTDCPS-28-35-45 or Rollease Power Panel (sold separately) |
| Smart Home | Requires Pulse 2 or Pulse PRO hub |
| Applications | Large roller shades (commercial or oversized residential) |

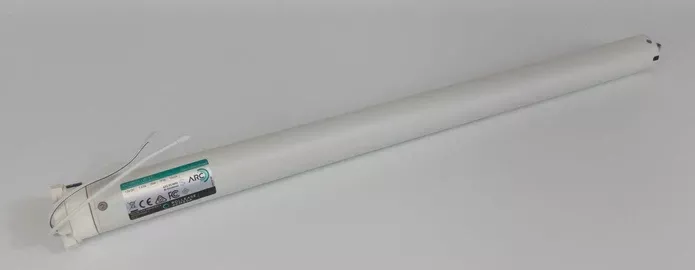

The MTDCRF45-10 is a high-torque 45mm hardwired DC motor for large shade applications. At 10Nm, it handles shades up to 144″×144″ — well beyond the capacity of 35mm or battery-powered motors. Connects to a centralized DC power panel, making it ideal for multi-shade commercial projects.
