Roofing

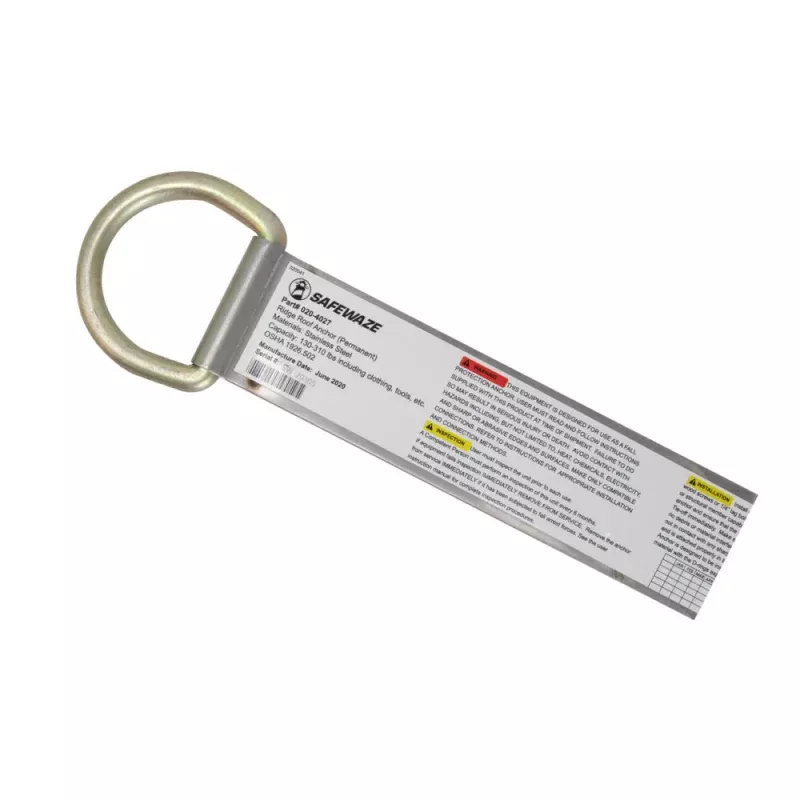

The Ridge Roof Anchor is designed for permanent use on residential wooden roof structures.
Features:
- Installs easily between roof peak and eves
- Low profile, minimalistic design
- Constructed with durable stainless and zinc-plated steel
- (8) 16D Roofing nails included
Specifications:
| Materials: |
Yellow zinc-plated steel, stainless steel |
| Weight: |
0.83 lbs. (0.4 kg) |
| Length: |
7.5″ (19.5 mm) |
| Material Thickness: |
0.04″ (1 mm) |
| Plate Width: |
1.9″ (48 mm) |
| Number of Holes: |
8 |
| Hole Diameter: |
0.18 in (4.5 mm) |
| Minimum Breaking Strength: |
5,000 lbs. |
| ANSI Weight Capacity: |
130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: |
Up to 420 lbs. (191 kg) |
| OSHA Standards: |
1926.502, 1910.140, 1910.66 |
