Design:

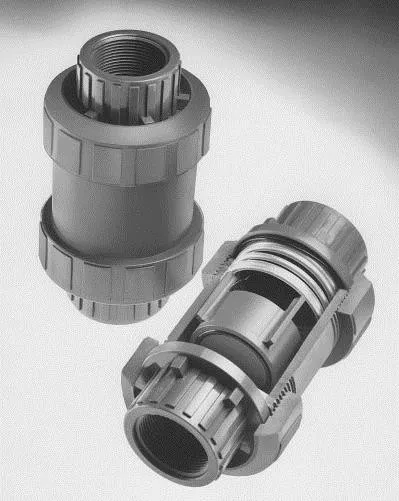

Series CKS Check Valves are normally-closed in design. They feature a corrosion resistant PFA encapsulated spring which energizes a poppet seal that will neither stick nor chatter and is automatic in action. The valves are not dependent upon gravity or reverse flow and represent a significant improvement over ball check valves. They can be mounted in any position. Even in the absence of reverse flow or pressure, the poppet will automatically reposition itself to seal against the valve seat.
Operation:
Flow entering the valve inlet will open the valve by pushing the poppet off the valve seat. In this position, the valve seat is kept clean by flushing action of the internal flow, keeping the entire sealing area free of particles which could cause leakage. If the inlet flow is stopped, or backflow of a higher pressure is sensed, the spring-loaded poppet will automatically reposition itself, closing off the valve seat. Reverse flow or pressure is not required to close the valve when the inlet stops.
