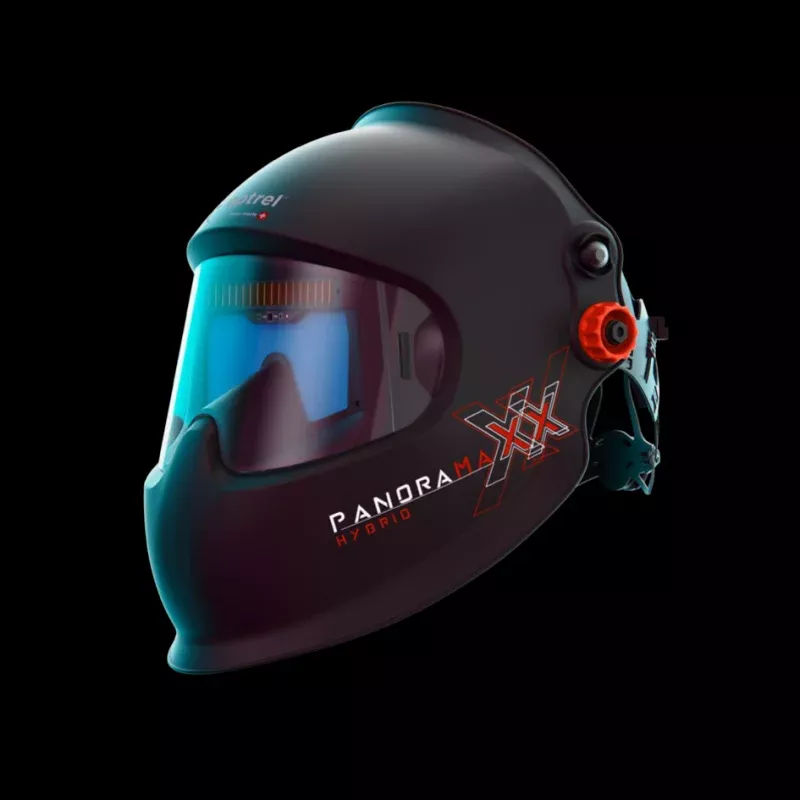

Optrel Panoramaxx Hybrid Laser / Arc Welding Helmet

Optrel Panoramaxx Hybrid Laser-Welding Helmet

Hybrid laser & traditional welding helmet – Change seamlessly between processes!

Disclaimer:
Do not look directly at the weld puddle, as laser reflections can damage the helmet and pose serious safety risks. Always position yourself safely behind the welding gun.

The ideal companion for hand-held laser welding and conventional arc welding

During laser welding, the infrared radiation can cause immediate and irreparable damage to eyesight due to its deep penetration depth. Damage is even possible from reflections. Suitable eye as well as face protection is therefore essential.

• Panoramic XXL field of view
• EN379 classification 1/1/1/2
• Shade levels 4-12
• ShadeTronic
• Fadetronic
• Rechargeable battery unit with charging via the welding arc
• 5-point multi-detection sensors

NEW Position Locker

The new two-position locking function for a safely open or closed helmet. Now standard with all Optrel Panoramaxx series welding helmets and with the IsoFit headgear.

Features and Technical Specs

• Detection of the arc brightness and fully automated shade level adjustment from4 to 12
• Sensitivity Control prevents ADF from responding too soon or not at all to their arc flash
• Opening Delay: Adjust the time it takes to switch from dark to light
• Curved helmet optimized for overhead welding
• Meets CSA standard Z94.3
• Part No.1010.031

Shade levels Light state: shade level 3.0
Manual: Shade levels 4-9
ShadeTronic : Automatic Shades 5-13 Energy supply 280mAh Li-Polymer battery rechargeable via micro USB connector and solar cell Battery life range 300 to 500 charging cycles Sensors Five sensors Sensitivity Continuously, new with Super High sensitivity Switching time 0.090 ms at 20C
0.070 ms at 55C
dark to light:
0.1 s to 2.0 s (with FadeTronic) Field of vision 2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF Classification EN379 1/1/1/2 Shape stability Mask: up to 220C
Front cover lens: up to 137C Eye protection Ultraviolet/infrared protection: Maximum in the entire protection level range
Visible range activated: Protection level 513 (ShadeTronic), 4-9 (manual)
Visible range not activated: Protection level 3.0 Operating temperature -10C to + 55C / 14F to 131F Storage temperature -20C to + 70C / -4F to 158F Weight 685 grams Warranty 2 Years, 3 Years with registration

Components and Markings:

Component Protection Group Marking Laser filter panoramaxx hybrid Eye- protection 16321 OS W3/4-9/5<13 V2
1000-1100 D LB7 IR LB8 OS
1000-1100 OD7 C5 PS3
ISO 19818-1 OS CE Laser protection frame Eye- protection 1000-1100 D LB7 IR LB8 OS
1000-1100 OD7 C5 PS3
ISO 19818-1 OS CE Welding shell (Polyamide) Face- and head- protection 16321 OS W15 E 1-M
1000-1100 D LB4 IR LB8 OS B
1000-1100 OD5 C2 PS3
ISO 19818-1 OS E CE Cover plate (Polycarbonate) Safety plate OS B CE

What’s Included

• Welding helmet
• Optrel IsoFit headgear
• Storage Bag
• Micro USB Charging Cable
• Front Cover Lens
• Warranty Card

Warranty

• From the date of purchase: 2 years for manufacturing and material defects, 6 months for the battery
• 1 year warranty extension (except batteries) for online product registration within the first 6 months

Complete Product Technical Specs
