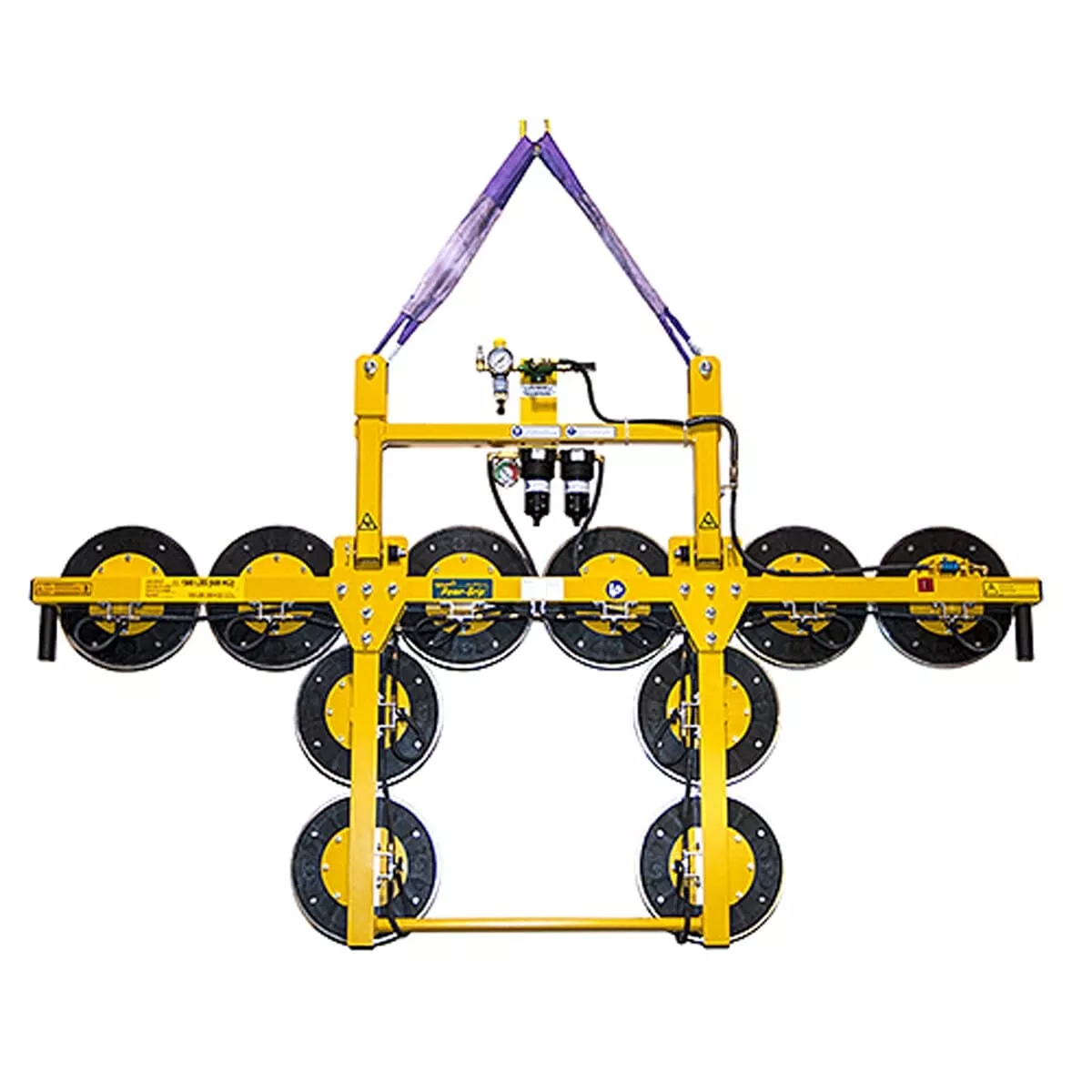

MT Vacuum Lifter Series

This lifter series is specially designed to handle loads with textured surfaces.

A variety of load capacities and power systems mean there’s a lifter here that’s ideal for your textured material tilting needs. The MT Lifter Series is a popular lifter in the Stone Industry, and is perfect for stone shops & installing granite countertops.

Tilter

Lifter Instructions

Lifter Troubleshooting

Lifter Specifications

Manual Tilter 1500

Standard Pad Spread:
33-1/4″ x 77-3/4″ [85 cm x 197 cm]

Number / Size of Vacuum Pads:
10 / 10″ [25 cm] diameter pads with replaceable sealing rings

Maximum Load Capacity:
1500 lbs [680 kg]

Manual Tilter 1200

Standard Pad Spread:
21-1/4″ x 77-3/4″ [54 cm x 197 cm]

Number / Size of Vacuum Pads:
8 / 10″ [25 cm] diameter pads with replaceable sealing rings

Maximum Load Capacity:
1200 lbs [545 kg]

Manual Tilter 900

Standard Pad Spread:
11-3/4″ x 77-3/4″ [30 cm x 197 cm]

Number / Size of Vacuum Pads:
6 / 10″ [25 cm] diameter pads with replaceable sealing rings

Maximum Load Capacity:

900 lbs [410 kg]

Manual Tilter 600

Standard Pad Spread:
11-3/4″ x 53-3/4″ [30 cm x 137 cm]

Number / Size of Vacuum Pads:
4 / 10″ [25 cm] diameter pads with replaceable sealing rings

Maximum Load Capacity:
600 lbs [270 kg]
