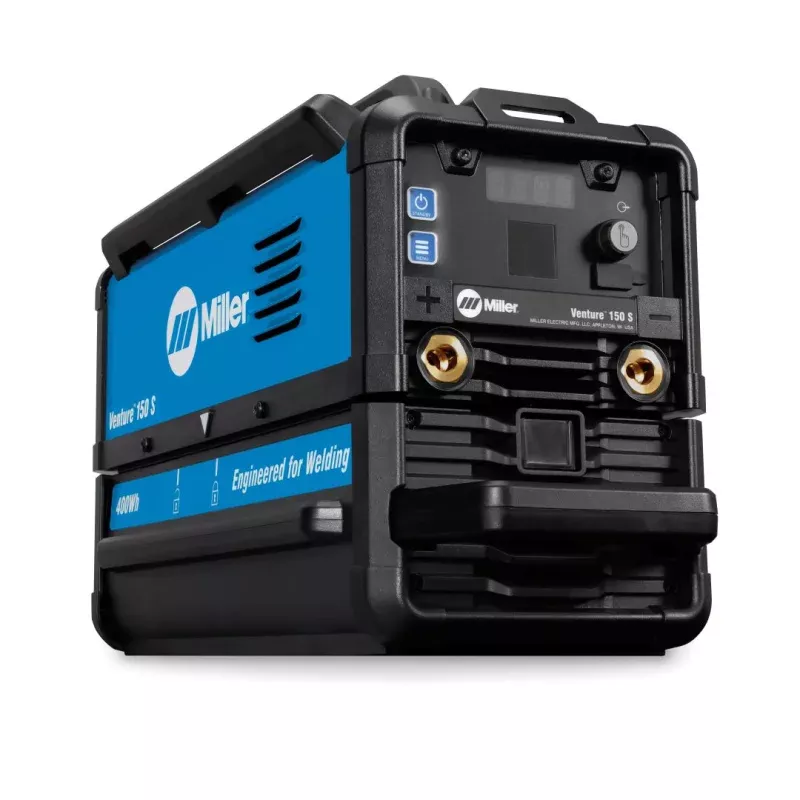

Miller Venture 150 S Battery Powered Welder
The Venture 150 S is a lightweight and compact battery powered Stick/TIG welder with swappable battery packs engineered specifically for welding. This high performing and innovative battery optimizes weld quality, reduces setup time, and is built to last for over 1000 charge cycles under proper usage and care.
Features
- Portable in the shop or at the jobsite at only 27 pounds (with battery)
- Inverter technology combines best-in-class arc characteristics
- Thermal overload protection helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
- DC stick and DC TIG processes capabilities
- Simple-to-use operator interface providing only the necessary controls in a compact machine.
- Fan-On-Demand power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.
- Lift-Arc provides TIG arc initiation without the use of high frequency. Pro-Set eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.
- Low OCV stick is a simple design that reduces the open-circuit voltage to 1216 volts when the welding power source is not in use. This circuit design is now built into the Venture 150 S eliminating the need for add-on voltage reducers.
- Hot Start adaptive control provides positive arc starts without sticking.
- Stick-Stuck detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode.
- Long life. Over 1,000 charge cycles under typical-use cases and with proper care.
TIG: 10-160A
W: 8.4 in. (213 mm)
D: 19 in. (483 mm)
Complete Package Includes
- Venture 150 S power source
- 400 Wh battery
- Battery charger
- 10 ft. (3 m) work cable with clamp and50 mm Dinse-style connector
- 10 ft. (3 m) stick electrode holder with50 mm Dinse-style connector
- Shoulder strap with pad
- 8 Rubber bumpers/feet
Full Product Data Sheet
