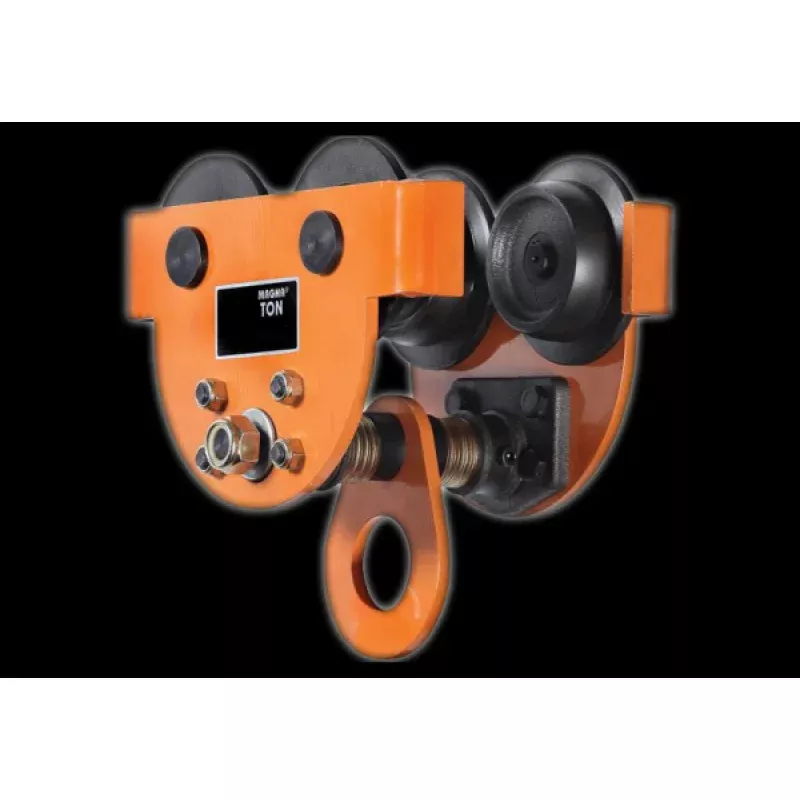

MAGNA 10 Ton Plain Trolley PTR1000
The MAGNA PTR1000 is a heavy-duty 10 Ton (22,000 lbs) plain trolley, designed to meet the toughest lifting challenges in steel mills, power plants, and construction. It provides a reliable, mobile suspension point for large-capacity hoists, allowing for the precise positioning of massive loads.
Built for resilience, the PTR1000 features a rugged steel frame and hardened wheels equipped with permanently lubricated, sealed ball bearings. This design ensures smooth operation and minimal maintenance even under maximum load. The trolley is adjustable for various beam widths and includes essential safety features like anti-drop bumpers to ensure secure operation.
Features & Benefits
- Extreme Capacity: Safely supports loads up to 22,000 lbs (10 Tons).
- Precision Movement: Sealed ball bearings ensure smooth travel under heavy load.
- Adjustable Fit: Compatible with I-beam flange widths from 5.0 to 8.0 inches.
- Safety Standard: Equipped with anti-drop lugs to maintain beam engagement.
- Certified Tough: Load tested to 150% of capacity; ANSI/ASME compliant.
Specifications
- Model Number: PTR1000
- Working Load Limit (WLL): 10 Ton (22,000 lbs)
- Trolley Type: Plain (Push)
- Fits Flange Width: 5.0 – 8.0 in.
- Minimum Radius Curve: 122 in.
- Headroom: 11.3 in.
- Net Weight: 161 lbs
