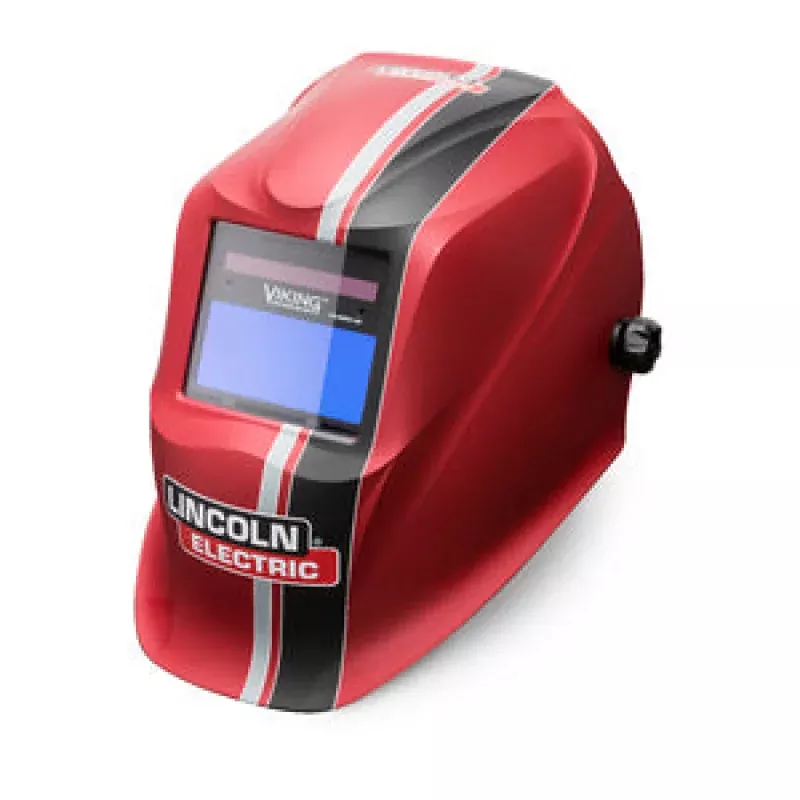

Lincoln K3495-3 Viking 1740 Recode Welding Helmet
There’s no shortage of features on their economically priced 1740 series auto-darkening welding helmet. Available in matte black & graphic finish.
- Perfect 1/1/1/1 Optical Clarity
- Variable 9-13 Shade, Sensitivity and Delay Control
- Weld & Grind Mode
- Hard hat and magnifying cheater lens compatible
- User replaceable AAA batteries
Features
- 6.3 Sq. Inch Auto-Darkening Viewing Area with Exclusive 4C Lens Technology, 1/1/1/1 Optical Clarity
- External Grind Control – Low profile, external button allows operator to switch between weld and grind mode in seconds
Specifications:
| CARTRIDGE SIZE |
4.33″ x 3.54″ (110 x 90mm) |
| VIEW WINDOW SIZE |
3.78″ x 1.67″ (96 x 42.5 mm) |
| NUMBER OF SENSORS |
2 |
| SHADE CONTROL |
Internal |
| VARIABLE WELDING SHADES |
DIN 9 to 13 with grind |
| SENSITIVITY CONTROL |
Variable Shade, Delay and Light Sensitivity |
| LIGHT TO DARK SWITCHING TIME |
0.00004 sec. (1/25000 sec) |
| DELAY CONTROL (LIGHT TO DARK) |
0.1 sec. min. – 1.0 sec. max |
| TIG RATING |
5 amps |
| COMPLIANCE |
Compliance: ANSI Z87.1-2010/CSA Z94.3 |
| OPERATING TEMPERATURE |
14 – 131 deg. F |
| STORAGE TEMPERATURE |
-4 – 158 deg. F |
| WEIGHT |
18.6 oz (528 g) |
| OPTICAL CLARITY |
1/1/1/1 (EN 379) |
Included:
- Decal Sheet
- 2 Inside Cover Lenses
- 5 Outside Cover Lenses
Accessories:
| PRODUCT NUMBER |
PRODUCT NAME |
| KP3283-1 |
Lincoln Viking 1740 Inside Clear Cover Lens Kit |
| KP3284-2 |
Lincoln Viking 1740 ADF Cartridge Replacement Kit |
| KP4100-1 |
Lincoln Ratchet Style Headgear with Sweatband |
| KP2930-1 |
Lincoln Viking All Purpose Sweatband Package |
| KP3047-1 |
LincolnHalo Style Hard Hat Adapter |
| KP3043-1 |
Lincoln Viking 1740/1840 Series Outside Cover Lens |
| KP3486-1 |
Lincoln Viking Slotted Hard Hat Adapter |
