Hand Carry Air Compressors

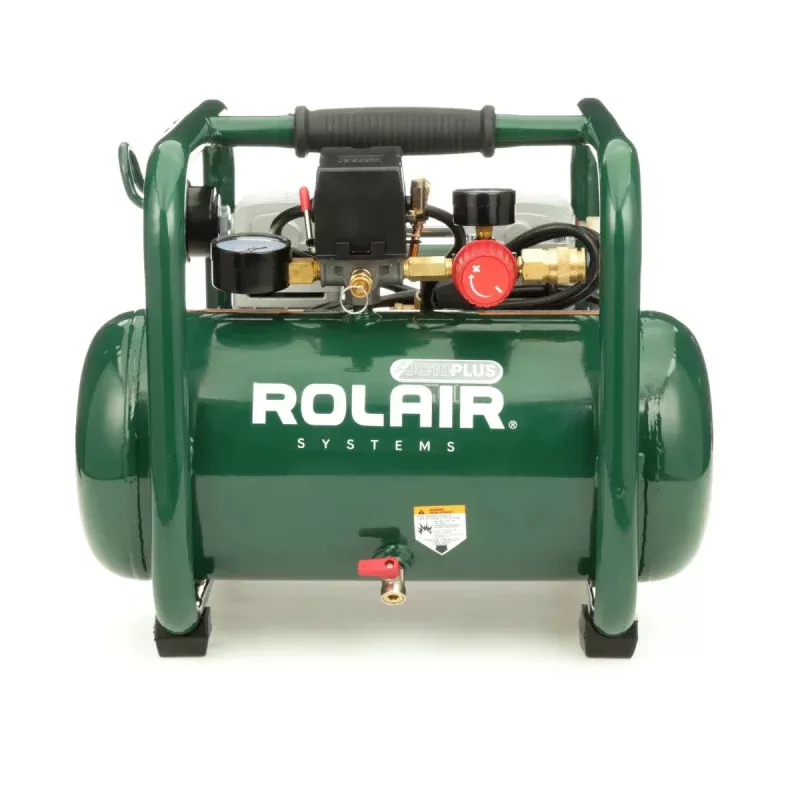

Model JC10PLUS – a super-quiet oilless air compressor – is the follow-up to our wildly popular JC10. The JC10PLUS features a host of improved features including a larger tank, sturdier roll-cage, integrated cord wrap and upward-facing gauges. The two-cylinder pump is powered by a 1700 RPM low-amp draw motor for maximum efficiency.
SPECIFICATIONS
| HORSE POWER |
1 HP |
| CFM DISPLACED |
4.1 CFM |
| CFM DELIVERED |
2.4 CFM @ 90 PSI |
| PUMP/MOTOR RPM |
1700 |
| OVERLOAD PROTECTION |
Yes (Automatic) |
| LUBRICATION TYPE |
Oil-Less |
| REED VALVE SYSTEM |
Yes (Standard) |
| NUMBER OF CYLINDERS |
2 |
| TANK CAPACITY |
2.5 Gallons |
| L X W X H |
16.5″ x 16.5″ x 14″ |
| DECIBEL RATING |
60 dBA |
| SHIPPING WEIGHT |
50 lb. |
| SHIPPING DIMENSIONS (L X W X H) |
17″ x 17″ x 15″ |
DOCUMENTS
JC10PLUS Spec Sheet
JC10PLUS Schematic
JC10PLUS Owner’s Manual
