Product Overview

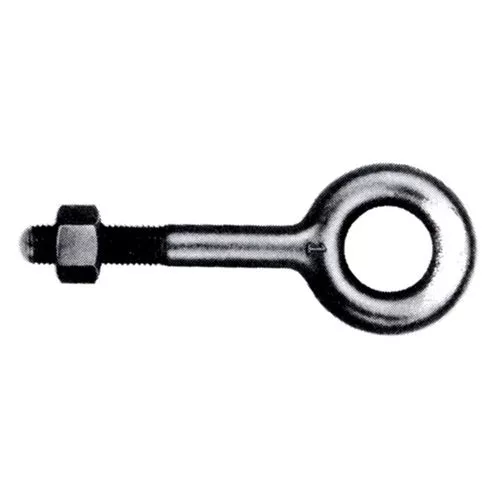

Eyebolt Drop Forged Hot Dipped Galvanized 3/8″ x 4 1/2″ with Standard Hex Nut
Specifications
- Eyebolt 3/8″ x 4 1/2″
- Drop forged
- Hot dipped galvanized
- Complete with standard hex nut
- Thread length 2.5″
- Eye inside dimension 0.75″
- Eye outside dimension 1.50″
- Working load limit 1200 pounds
- Never exceed the working load limit
- Failure to follow the instructions for use below and these warnings may cause death or serious injury.
- Rated capacity is drastically reduced when loading at any angle.
- Follow all warnings, use, and application instructions as supplied by the manufacturer.
- Loading must never be made at an angle greater than 45° from the bolt centerline.
- At any angle of 45°, the rated capacity is reduced to 1/4 of the tabulated value.
- Loads should always be applied to the lifting eyes in the plane of the eye, not at some angle to this plane.
