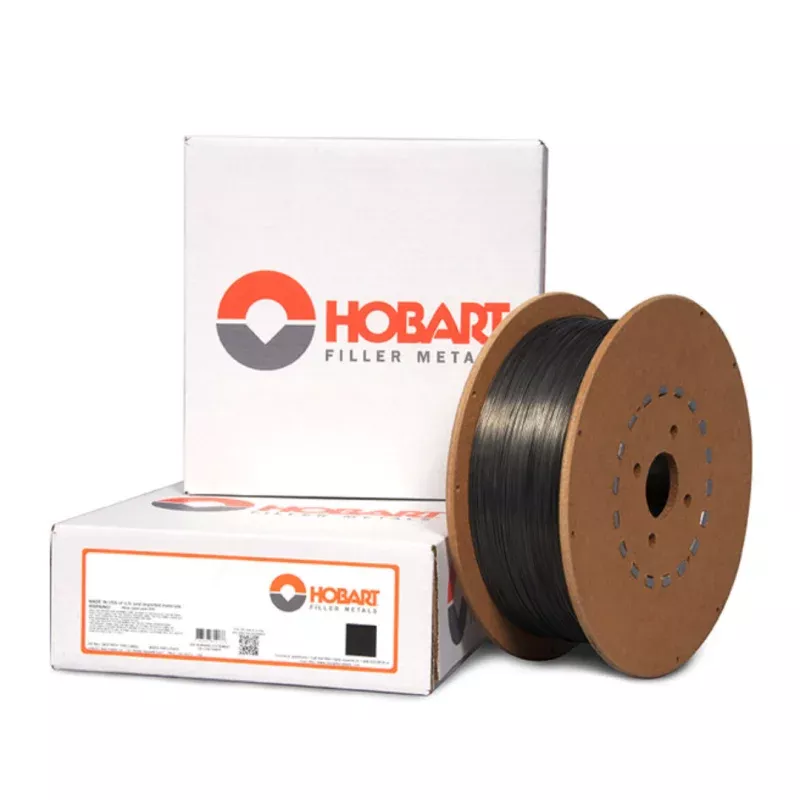

Hobart FabCO Excel-Arc 71 Flux Cored Wire

Hobart FabCO Excel-Arc 71 FCAW Flux Cored Welding Wire

FabCO Excel-Arc 71gas-shielded flux-cored welding wire produces minimal spatter and offers easy slag removal for faster cleanup and more productivity. Excellent out-of-position capability, good impact toughness and cracking resistance make it a great choice for shop structural welding.

Features

• Low fumes and spatter: Increases welder appeal and productivity

• Fast-freezing slag: Excellent weld pool control for consistent out-of-position welds.

• Able to bridge poor fit-up without burn-through: Increases productivity, reduces part rework/rejection

Conformances and Approvals

AWS A5.20, E71T-1C H8, E71T-1M H8, E71T-9C H8, E71T-9M H8 Burea Veritas, 100% CO2, S3YM HH (0.045 – 1/16 diameter electrodes) ASME SFA 5.20, E71T-1C H8, E71T-1M H8, E71T-9C H8, E71T-9M H8 CWB, 100% CO2 E491T-9-H8, 75-80% Ar/Balance CO2, E491T-9M-H8 (1.2 mm – 1.6 mm diameter electrodes) AWS A5.20M, E491T-1C H8, E491T-1M H8, E491T-9C H8, E491T-9M H8 CWB, E491T1-(C1A3, M20A3, M21A3, GA3)-CS1-H8 (E491T-9-H8, E491T-9M-H8) DNV-GL, 100% CO2, III YMS(H10) EN ISO 17632-A: T46 3 P C1 2 H10, T46 3 P M21 2 H10 CE Marked per CPR 305/2011 Lloyds Register, 100% CO2, 3YS H10 AWS D1.8/D1.8M, 100% CO2 & 75% Ar/25% CO2, (0.045 [1.2 mm] & 1/16 [1.6 mm] diameter electrodes) ABS, 100% CO2 3YSA H10, 75% Ar/25% CO2 , 3YSA H10 (0.045 – 1/16 diameter electrodes)

Applications:

General fabrication Shipbuilding

Railcar fabrication

Single or multi-pass welding Storage and pressure vessels

Heavy-gauge sheet meta

Non-alloyed and fine grain steels

Recommendations

• Slag System: Fast-freezing, rutile-type, flux-cored wire
• Shielding Gas: 100% Carbon Dioxide (CO2), 75-85% Argon (Ar)/Balance Carbon Dioxide (CO2), 35-50 cfh(17-24 l/min)
• Type of Current: Direct Current Electrode Positive (DCEP)
• Standard Diameters: 0.045 (1.2 mm), 0.052 (1.4 mm), 1/16 (1.6 mm)
• Re-Drying: Not recommended
• Storage: Product should be stored in a dry, enclosed environment and in its original intact packaging

Available Options and Part Numbers

Wire Diameter 15-lb. (7kg) Spool 33-lb. (15kg) Spool 50-lb. (22.7kg) Spool 60-lb. (27.2kg) Coil 500-lb. (227kg) X-Pak

750-lb. (340kg) Drum

0.045″ (1.2mm) S247112-023 S247112-029 – – S247112-050 – 0.052″ (1.4mm) S247115-023 S247115-029 S247115-027 – – S247115-076 1/16″ (1.6mm) – S247119-029 S247119-027 S247119-002 – S247119-076

Product Data Sheet
