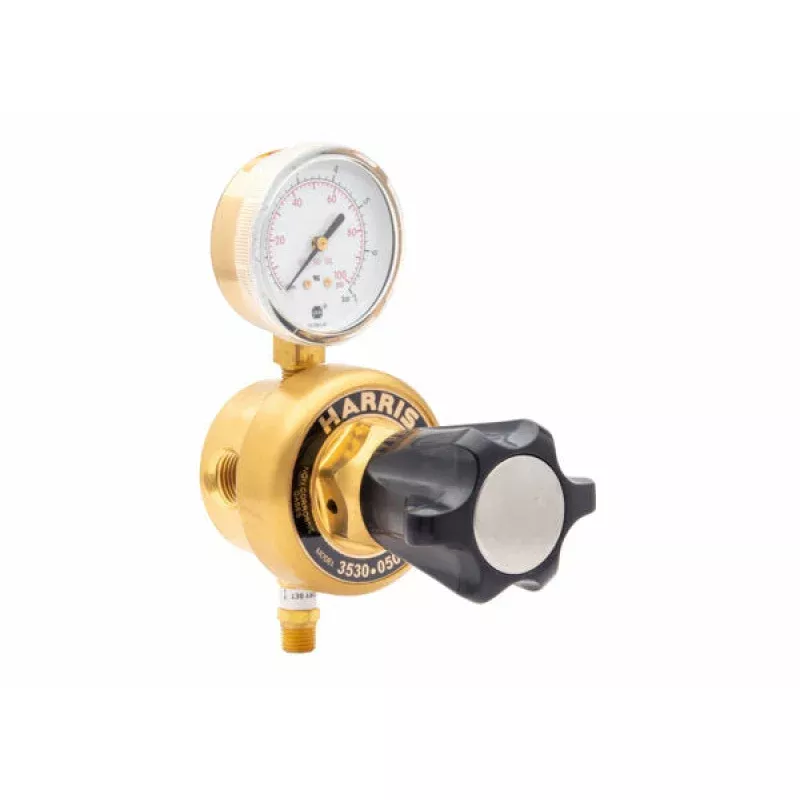

Harris Model 3530 Regulator
Model HP3530 is a brass barstock line regulator for pipe line and final line delivery pressure from a source pressures. The Model HP3530 is suitable for non-corrosive gas applications, high purity gas applications, research sample systems gases, process analyzer gases, bulk gas distribution, packaging, blanketing laser gas systems and emission monitoring systems.
Features
- 2-3/4 stainless steel diaphragm eliminates contamination from diffusion or outgassing
- One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE Teflon seat from particulate contamination
- Brass barstock body, bonnet and fittings
- 2-1/2 brass dual scale gauge (psi/bar)
- Four port configuration, one high pressure and three low pressure
- 1/2 NPT (F) inlet and outlet connections
- Maximum inlet pressure 3000 PSIG
- Conforms to CGA E-4 standard for gas pressure regulators
Part Number – 4000801
