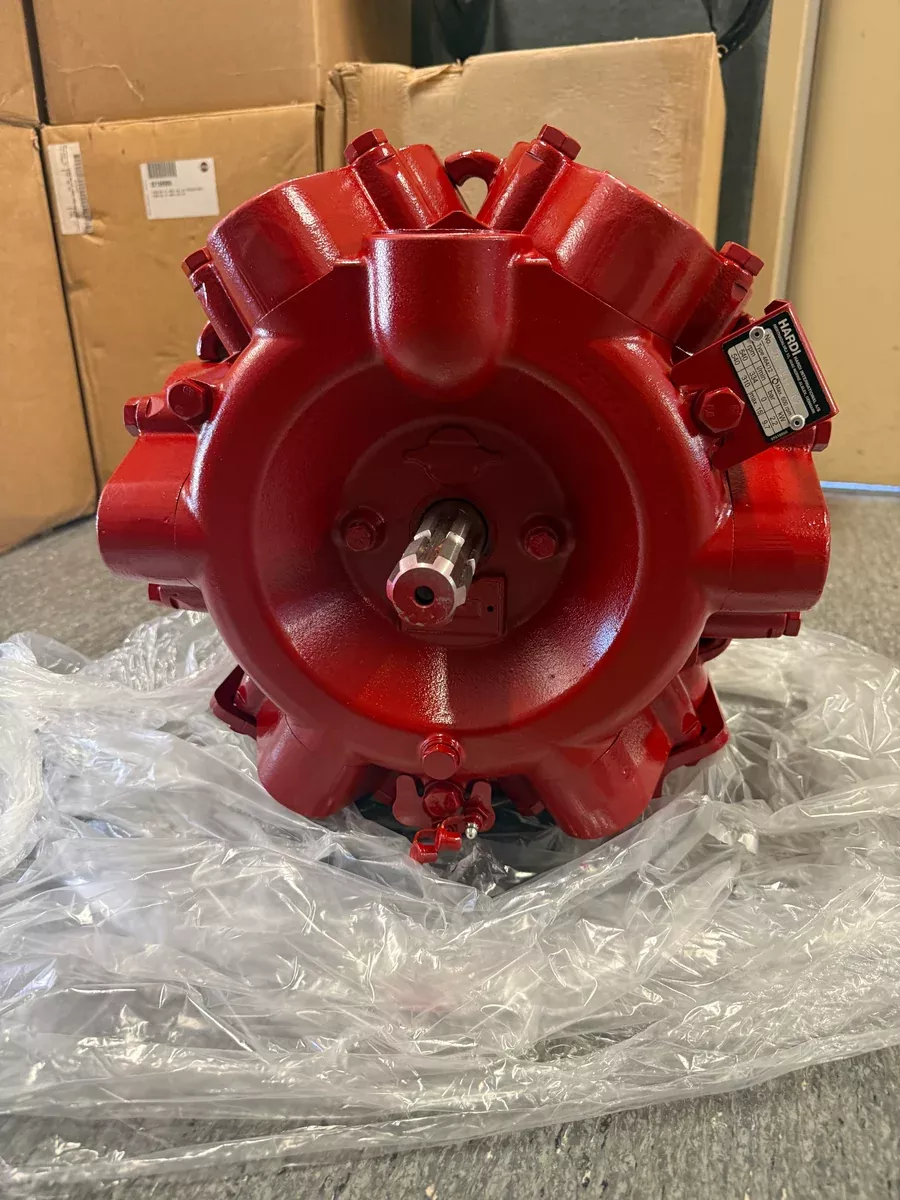

General Specifications for HARDI 464/10 spray pump:
– Compact two diaphragm positive displacement pump.
– Low power consumption.
– Self-priming.
– Can be run dry.
– Can rotate clockwise or anticlockwise.
– Single grease point for lubrication.
– Dry sump to simplify maintenance.
– No special tools are needed for maintenance.
– Polyurethane diaphragms and seals.
– Cast iron crankcase and covers.
– 10mm Suction Port at shaft end.
– 3/4″ suction port at pressure end.
– Cylindrical shaft, 25 mm / 0.98″.
– Supplied with narrow base plate.
– Normal operating revolutions: 540 RPM.
– Maximum pressure: 220 PSI (15 bar).
– Maximum flow: 108 LPM.
– Maximum vacuum: 12.5 PSI (0.85 bar).
– Weight: 33 lbs (14.8 kg).
Recommended to use HARDI suction and pressure dampers.
