Product Overview

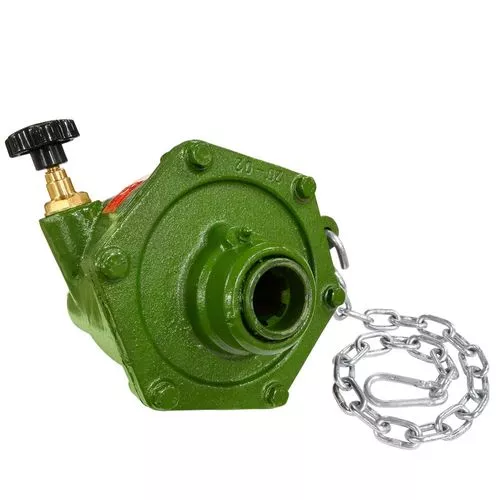

The roller pump consists of cast iron housing, a rotor with nylon rollers, a cover, two hose connections, a chain for rigid fastening on tractor and a brass valve for pressure regulation.
This pump rotates in a clockwise direction only and fits a 540 spline PTO shaft. The technical features are a 1 inch inlet, 3/4 inch outlet, maximum delivery 48 GPM, maximum pressure 365 PSI, maximum head 820 feet, maximum self priming distance 20 feet, maximum revolutions per minute 600, maximum self priming distance with a foot valve 30 feet, and a maximum absorbed power 4 KW.
This pump cannot be used for liquid nitrogen or liquid fertilizer. The pump works well for the larger booms on some equipment on today’s farms.
Specifications
- Ferroni brand
- Model MLI-25
- 1 in. inlet, 3/4 in. outlet
- Up to 48 GPM
- Up to 365 PSI
- Built-in 540 coupler
- Built-in regulator
- Fitting for inlet: ASC 16829A
- Fitting for outlet: ASC 16826A
- Repair kit: ASC 27324
- Fits a 540 splines PTO shaft
- Inlet: 1.18 in.
- Outlet: 0.7486 in.
- Revolutions per minute: 600
- Absorbed power: 5.5 HP
- Clockwise rotation
- Discharge-washing: 18.49 gpm
- Discharge-watering: 47.56 gpm
- Height: 9.85 in.
- Length: 8.66 in.
- Width: 7.48 in.
- Cannot use for liquid nitrogen or liquid fertilizer
