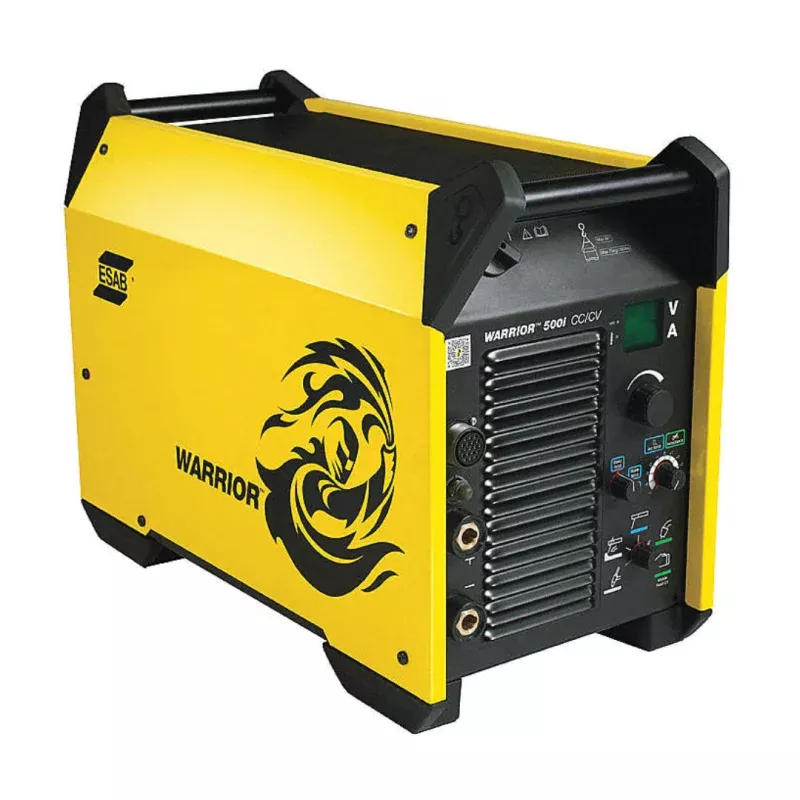

ESAB Warrior 500i Multi-Process CC/CV Power Source

ESAB Warrior 500i CC/CV Power Source

Heavy-Duty Multi-Process Welding PowerBuilt to Perform.

The Warrior 500i is a robust, industrial-grade welding power source engineered for high-performance across MIG/MAG, Stick (SMAW), and TIG (GTAW) processes. Designed for harsh environments and heavy-duty cycles, the 500i delivers up to 500 amps with exceptional reliability and ease of use. Whether in fabrication shops, shipyards, or remote sites, it meets the toughest demands with power, precision, and rugged durability.

Key Features

• Multi-Process Flexibility: Supports MIG/MAG, Stick, and TIG welding with seamless adaptability.
• High-Duty Cycle Output: Delivers 500 A at 60% duty cycleideal for extended welding jobs.
• User-Friendly Interface: Glove-friendly knobs and intuitive controls simplify setup and operation.
• Energy Efficient: High efficiency (89%) with energy-saving standby mode.
• Durable Design: IP23-rated enclosure withstands harsh indoor and outdoor conditions.
• Advanced Arc Control: Consistent arc performance even with large-diameter wires for hardfacing.

Specifications

Product Name // Part Number

ESAB Warrior 500i // 0465350887

Input Voltage 380575 V, 3-phase, 10% Supply Frequency 50/60 Hz Fuse (Slow) 32 A Duty Cycle – GMAW (MIG/MAG) 60% @ 500 A / 39 V
100% @ 400 A / 34 V Duty Cycle – SMAW (Stick) 60% @ 500 A / 40 V
100% @ 400 A / 36 V Duty Cycle – GTAW (TIG) 60% @ 500 A / 30 V
1000% @ 400 A / 26 V Current Setting Range (GMAW/SMAW) 16500 A Current Setting Range (GTAW) 5500 A Dimensions (L x W x H) 28.1 x 12.8 x 18.5 in.
(712 x 325 x 470 mm) Weight 59 kg (130 lbs) Enclosure Class (Protection) IP23 Certifications CE, CSA

Full Specification Sheet

What’s Included:

• Warrior 500i Power Source-0465350887

Warrior 500i User Manual
