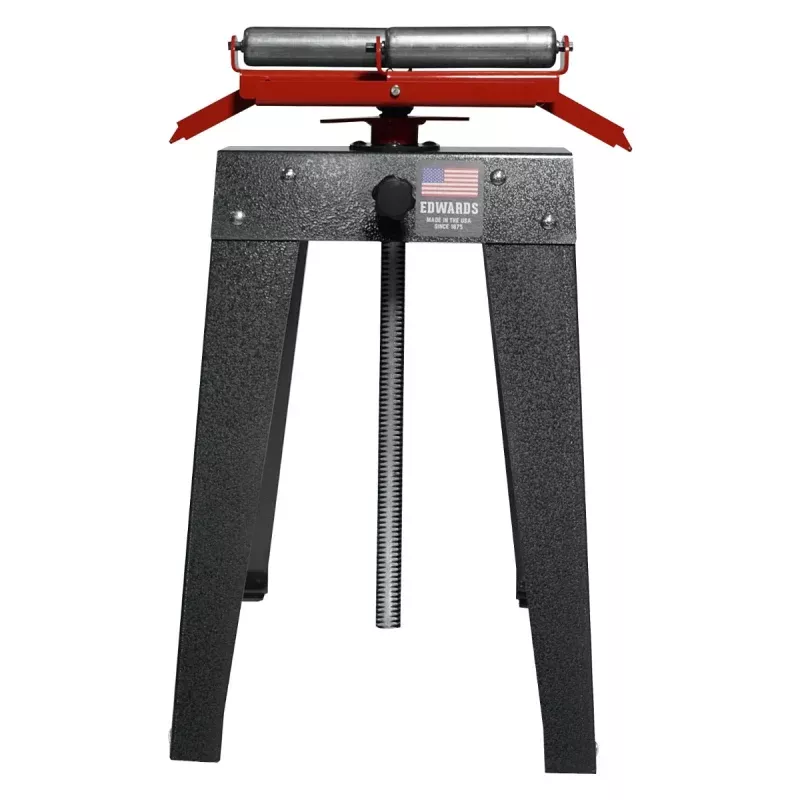

EDWARDS 14″ COMBINATION HORIZONTAL
& V-MATERIAL SUPPORT STAND
Originally designed for use with Edwards products, we quickly realized that this heavy duty roller stand would be a welcome addition to any shop, no matter what brand was being used. This roller stand provides support for up to 500 lbs of material in many different configurations.
Features:
- Operates in multiple configurations to be compatible with a variety of materials and machines.
- Can be used in either a flat “T” configuration or a “V” configuration.
- Accepts a wide variety of materials including flat bar, angle iron, solid rod, tube and pipe or whatever else you are using.
- Smooth steel rollers for easy movement
- 500 lbs capacity
- Fast and easy adjustments for height and roller angle
“T” POSITION FOR FLAT MATERIAL SUPPORT
Height adjusts in “T” layout from 30.8″ to 49.9″
Width or rollers in “T” layout is 14″
“V” POSITION FOR ANGLE IRON OR SOLID ROD SUPPORT
Height adjusts in “V” layout from 31.8″ to 51.1″
“V” arm length is 4.5″
Specifications:
- Weight Max Capacity (lbs.) – 500
- Height Adjustment Range – “T” Layout Flat (in.) – 30.8 – 49.9
- Height Adjustment Range – “V” Layout (in.) – 31.8 – 51.1
- Roller Die Width (in.) – 8
- Roller Die Diameter (in.) – 1.9
- Product Dimensions (in.) – 18.5 x 22.1 x 31.8
- Shipping Dimensions – 30 x 26 x 7
- Product Weight (lbs.) – 50
- Shipping Weight (lbs.) – 55
