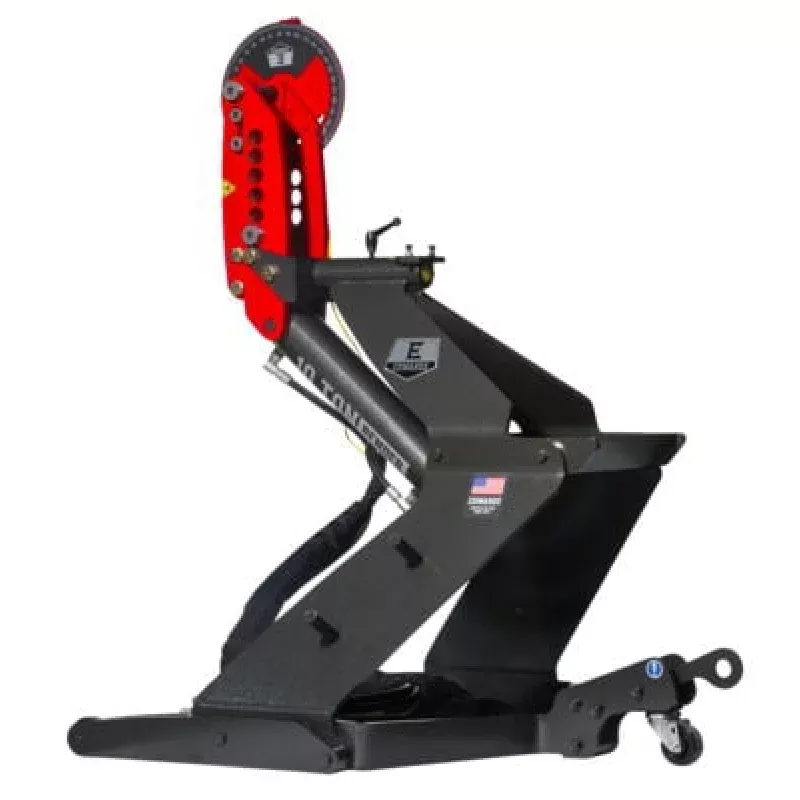

Our 10 Ton Bender is a quick-connect hydraulic tool that greatly expands your fabrication capabilities. Designed for medium to heavy material, theEdwards 10 Ton Benderpowers through 2″ (I.D.) Schedule 40 pipe, 2-1/2″ (O.D.) tube and 2″ square tube quickly and accurately. Choose from our over 280 standard Bender Die Sets to get your job done. Call for custom die information and material compatibility requirements.
Features:
- Plug + Play Operation
- Horizontal or Vertical Operating Positions
- Proximity Switch Allows Easy, Repeatable Bends
- Heavy-Duty Rolling Stand
- Easy-to-Use Hand/Jog Controls
Specifications:
Standard Motor
- 5 HP 3~ 208 V or 230 V,1725 RPM 14 A
Optional Motors
- 5 HP 3~ 460 V,1725 RPM 7 A
- 5 HP 3~ 575 V,1725 RPM 6 A
- 5 HP 1~ 208 V or 230 V,1725 RPM 23 A
Hydraulic Pump
- 3-1/2 GPM – 1 Stage
Valve Pressure
- 2750 PSI
Reservoir
- 7 Gallons
Bend Capacity
- 180
Pipe Capacity
- 2″ (ID) Schedule 40
Tube Capacity
- 2-1/2″ (OD) .095″
Square Tube Capacity
- 2″ (OD) .25″
Chromoly Capacity
- 2-1/4″ (OD) .083″
Cylinder
- 1-3/4″ Ram
Stroke
- 14″
Dimensions:
Height:40-1/2″
Width 36-1/2″
Depth:42″
Shipping Weight: 600 lb
