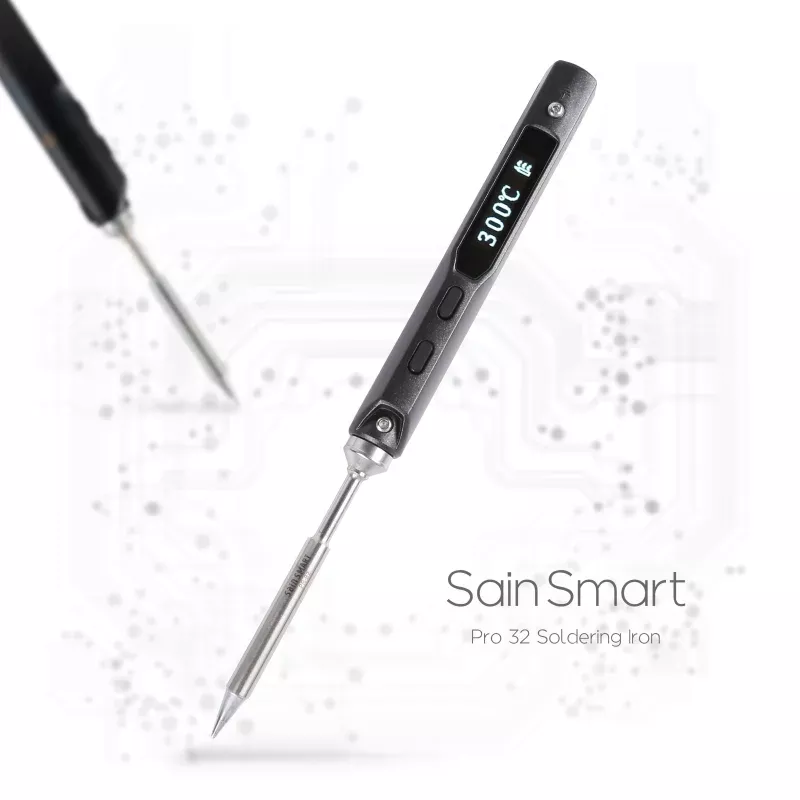

![[Discontinued] ToolPAC PRO32 Smart Soldering Tool Set with Power Supply](https://www.bestsolidcraftparts.com/wp-content/uploads/2026/09/discontinued-toolpac-pro32-smart-soldering-tool-set-with-power-supply.webp)
External Power Supply
The Pro32 features an integrated DC5525 12-24V connection, compatible with DC 1224 V laptop AC adapters, power banks, and car power.
Various Modes
The integrated STM32 processor chip automatically regulates the Pro32s sleep mode, standby, and operating mode, ensuring user safety.
Easy-to-read OLED Display
The kit features excellent heat dissipation efficiency with a high-quality SAE 304 stainless steel core and an LED digital display.
Heat Up Quickly
The Pro32 features adjustable temperature control from 100C to 400C, making it an essential toolkit for soldering various objects.
The Pro32 is a staple tool for hobbyists, tinkerers, and electrical engineers. Featuring a sleek body with temperature adjustment buttons and an OLED display, the Pro32 is comfortable to hold and offers a wide temperature range for operation. Its internal heating element warms up to operating temperature in just 12 seconds!
As an industry leader since 2010, SainSmart offers a 1-year manufacturers warranty on all parts, ensuring your purchase is protected.
SPECIFICATION
- Operating Voltage: 12V to 24V
- Power: 17W to 65W
- Screen: OLED
- USB Port: Micro USB
- Power Port: DC5525
- Temperature Stability: 2%
- Soldering Tip Resistance to Ground: <2
- Temperature Range: 212F to 752F (100C to 400C)
- Control Part: Length: 96mm, Diameter: 16.5mm
- Heating Part: Length: 72+33mm, Diameter: 5.5mm
- Compliant with EU Certification: CE FCC
Original Replacement Solder Tip for Pro 32 Digital LCD Soldering Iron:
WHAT’S IN THE PACKAGE
- 1 x Pro32 Digital LCD Soldering Iron
- 1 x PR-B2 & PR-BC2 Solder Tip
- 1 x Allen Key (for replacing tips and heating element)
- 1 x 19V/2.1A 100-240V Power Supply (AC/DC Power Adapter)
DOCUMENT
Pro32 Resources
Manual
APP
Source Code
