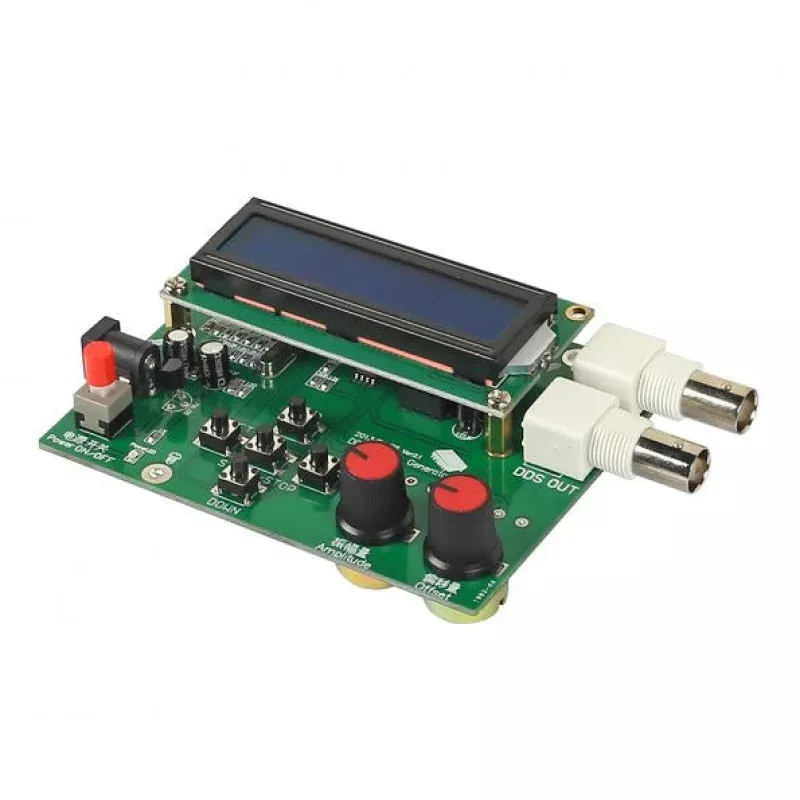

[Discontinued] SainSmart 2015 Low Frequency DDS Function Signal Generator Module Sine Square Triangle Wave

Description:

• Operating voltage: DC 7V-9V.
• DDS frequency range: 1HZ-65534Hz.
• High-speed frequency (HS) output up to 8MHz.
• DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.
• DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
• 1602 LCD menu.
• With keypad area onboard for easy control of frequency and wave type.
• Step: 1, 10, 100, 10000Hz.
• The power automatically restore the last used configuration.
• Offset: 0.5pp-5Vpp.
• Amplitude amount: 0.5Vpp-14Vpp.
• Size: 12cm x 8cm x 3cm.

Package list:

• 1xDDS Function Signal Generator Module

Note: Power cord is not included.
