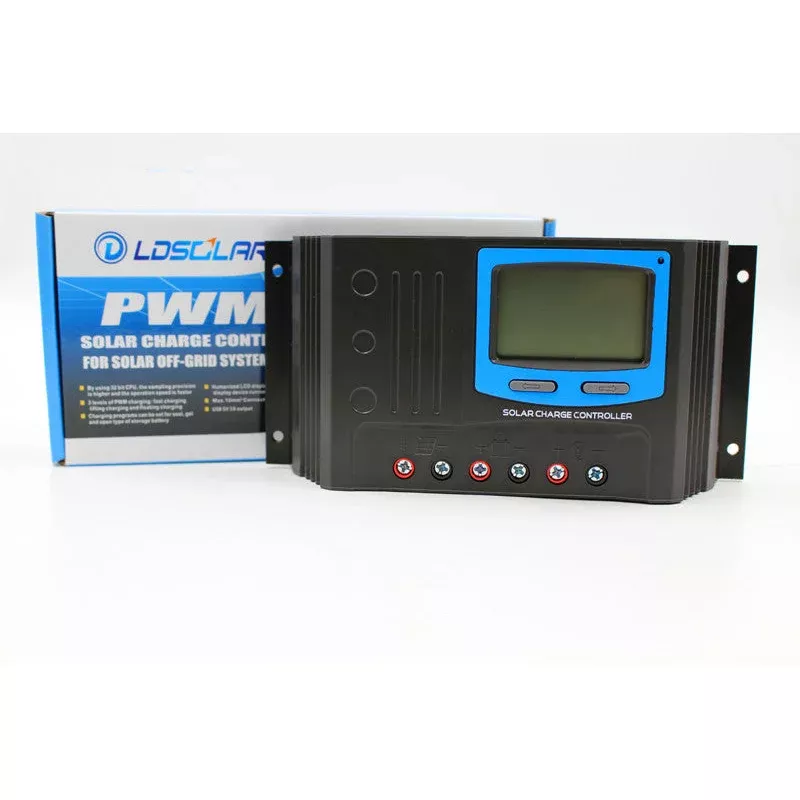

[Discontinued] PWM Solar Battery Charge Controller SD2430S-30A12V24V USB

SPECIFICATION

• Mode: SD2430S
• System Voltage: 12V/24V
• PV Max Input Voltage: 55V
• Self-consumption: ?0mA
• Max Charging current: 30A
• Max Discharging current: 30A
• LVD: 11.0V ADJ 9V?12V;2/24V;4/48V
• LVR: 12.6V ADJ 11V?13.5V;2/24V;4/48V
• Float Voltage: 13.8V ADJ 13V?15V;2/24V;4/48V
• Boost Voltage: 14.4V ; 2/24;4/48V battery voltage less than 12.6v auto boost 2hours
• Battery Over Voltage Protection: 16.5V ;2/24V;4/48V
• Reverse Connection Protection: yes
• Load Over Current Protection: Yes, each 30s auto restart again
• Controller Over Temperature Protection: Yes
• Charging Type: PWM
• Temperature Consumption: -24 mV /? for 12Vsystem ;2/24V;4/48V
• WorkingTemperature: -20?—+55?
• Terminal scale: 16mm2
• Waterproof grade: IP32
• Size: 200mm98 mm47.5mm
• Weight: 440g

* Please under rated power using under high temperature environment.

WHAT’S IN THE PACKAGE

• 1 x SD2430S Solar Charging Controller
• 1 x User Manual
