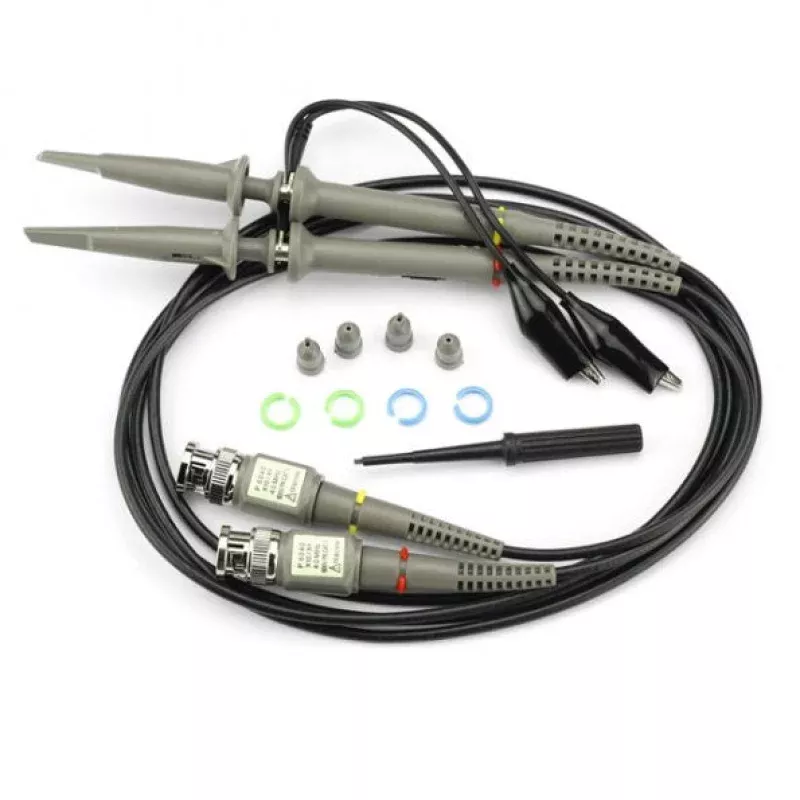

[Discontinued] P6040 40MHz Oscilloscope Probe

Specification:

Model: P6100

Attenuation Ratio: 1x & 10x

Input Resistance(M): 1x: 1

10x: 10

Input Capacitance(pF): 1x: 130

10x: 20

Compensation Range(pF): 10x: 15-45

Brandwidth(MHz): 1x: 6

10x: 40

Rise time(ns): 1x: 58

10x: 8.75

Working Voltage(Vp-p): 1x: 300

10x: 600

Net Weight(g): 64

Cable Length(cm):120

Operating Temp.(?):-10-+50

Non-operating Temp.(?):-20-+75

Humidity: ?5% Relative Humidity

Operating Instruction

These high passive impedance probes aredesigned and calibrated for useon any oscilloscope that has an inputimpedance of 1 M and whose inputcapacity is within the compensationrange (refer to thespecifications.) When connecting the probe, pleaseconnect it to theoscilloscope before testing signals. Whendisconnecting the probe, firstdisconnect the probe tip form the testsignal. In the process of test,make sure that alligator clip can begrounded reliably.

Low-frequency Compensation Adjustment

Low frequency response can be matched to the oscilloscope by adjusting the compesation trimmer on the head of the probe.
1. Connect the probe to the oscilloscope and to a 1KHz square waveform source.
2. Let the oscilloscope display a stable waveform.
3. Carefullly adjust the trimmer tool to botain the flat test tops to the square waves displayed on the oscilloscope
