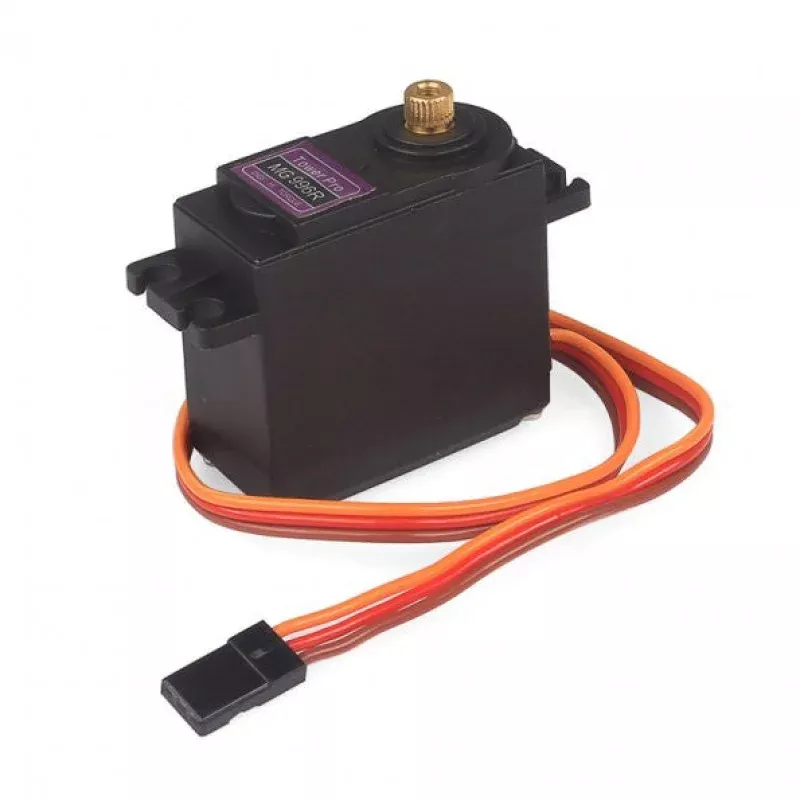

[Discontinued] Metal Gear Servo MG996

We also have a selection of Basic Starter Kit, Deluxe Starter Kit, Ultimate Starter Kitthat utilize this motor.

SPECIFICATION

• Power Supply: through an external adapter.
• Stable and shock proof.
• Metal gear and double ball bearing.
• Operating speed: 0.17sec / 60/ (4.8V no load), 0.14sec / 60/(6.0V no load).
• Stall torque: 13 kg / cm (180.5 oz-in) at 4.8V, 15 kg / cm (208.3 oz-in) at 6.0V.
• Operation voltage: 4.8 – 7.2V.
• Temperature range: 0,? — 55,?.
• Dead band width: 5usec.
• Dimension: 40mm x 19mm x 43mm.
• Weight: 55g.
• Gear type: metal gears.
• Connector wire length: 300mm.

WHATS IN THE PACKAGE

• 1 x MG996R Metal Gear Servo for Futaba JR Car MG995 Upgraded
