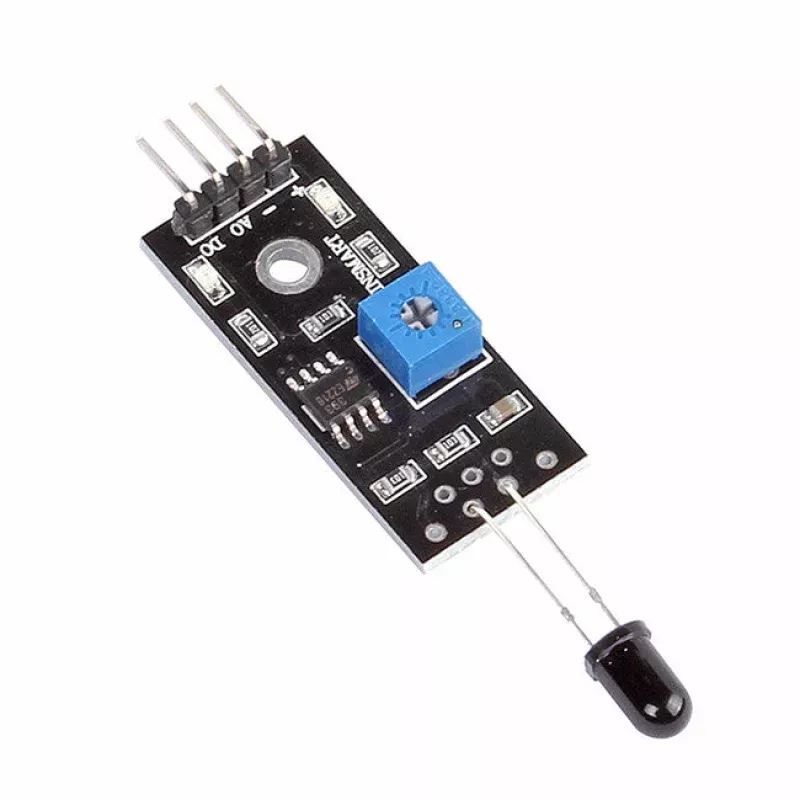

[Discontinued] Infrared Flame Detection Sensor Module

DESCRIPTION

Flame Detection Sensor Module is sensitive to the flame, but also can detect ordinary light. Usually used as a flame alarm. Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm. Detection point of about 60 degrees, particularly sensitive to the flame spectrum. Sensitivity is adjustable, stable performance.

We also have a selection of Basic Starter Kit, Deluxe Starter Kit, Ultimate Starter Kitthat utilize this module.

FEATURE

• 100% brand new and high quality
• Detection angle about 60 degrees, it is sensitive to the flame spectrum.Accuracy adjustable
• Operating voltage 3.3V-5V
• Outputa. analog voltage outputb. digital switch outputs (0 and 1)
• With a mounting screw holePCB size: 3cm * 1.6cm
• Power indicator (red) and digital switch output indicator (green)
• Comparator chip LM393 ,it is stable.
• Flame detection distance, lighter flame test can be triggered within 0.8m, if the intensity of flame is high , the detection distance will be increased.

Directions:

• + — 3.3V-5V voltage
• – — GND
• DO — board digital output interface (0 and 1)
• AO — board analog output interface
• On board, digital output interface can be directly connected with the microcontroller IO.
• Please keep a distance with flame, high temperature maybe burn out the sensor module.

WHAT’S IN THE PACKAGE

• 1 x IR Infrared Flame Detection Sensor Module Detect Fire Flame Sensor
• 4 x Dupont Wires
