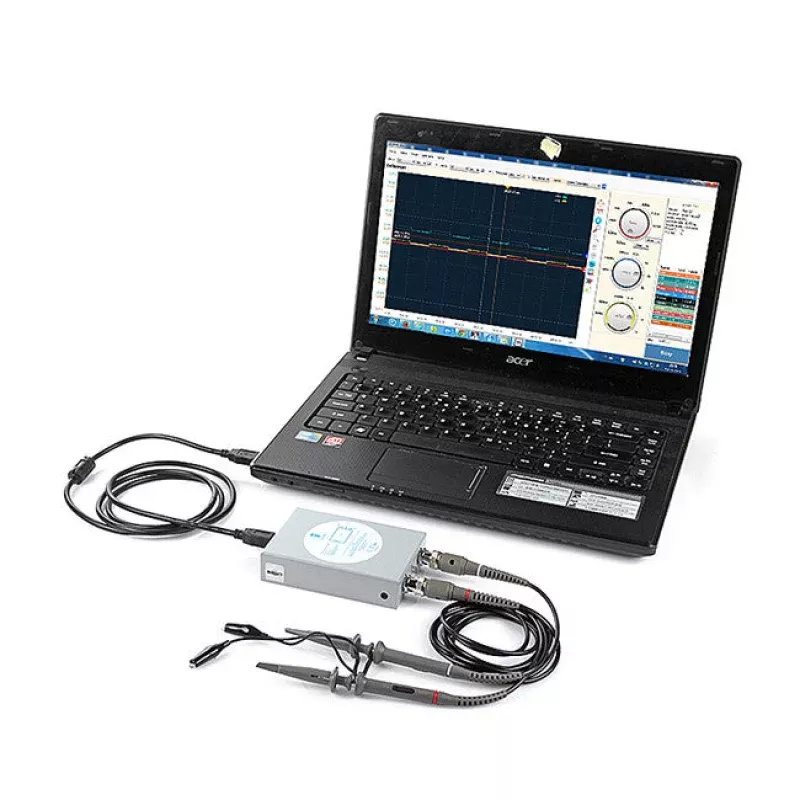

[Discontinued] DDS-120 PC-based Virtual Oscilloscope, Silver [US ONLY]

Accessories

• Module: P6100
• Attenuation ratio: 1:10
• Input resistance: 1M/10M
• Rise Time: 1x 58ns / 10x <3.5ns
• Bandwidth: DC-6MHz, DC-60MHz
• Input Capacitance: 1X: 85pF-120pF, 10X: 18.5pF-22.5pF
• Compensation Range: 15pF-45pF
• Working Voltage: 1X: <300VDC + AC Vp-p, 10X: <600VDC + AC Vp-p
• Cable Length: 120cm
• Net Weight (One PCS): 55g
• Operating Temperature: -15C – +75C
• Non-operating Temperature: -20C – +60C
• Humidity: 85% (relative humidity)

Application

• Site engineer travel to debug
• AE engineers diagnose equipment and solve problems for customers on-site
• Electronics engineers develop tools, saving money and desktop space
• The ideal partner for electronic enthusiasts for their amateur making
• Fault diagnosis equipment for repair personnel
• Demonstration teaching laboratory aids for colleges and universities
• Automatic test equipment for production

Hardware Feature

• Real-time sampling rate up to 50MS/s
• Bandwidth: 20MHz
• 10kV ESD protection
• 10 times over voltage protection
• DC-coupled and AC-coupled input
• Computer USB supply power directly
• 1K Hz square wave signal output

Software Feature

• Supports XP~Win10 series of operating systems
• Software interface can be combined with third-party software
• Waveform recording and continuous playback, as well as specified frame playback functions
• Input channel arithmetic and FFT analysis
• Anti-aliasing features of waveform drawing to reduce rendering errors
• Memory function for user personalization settings
• Rapid mouse control for trigger function settings

SPECIFICATION

Specifications for the P6100 Module Category Index Interface USB 2.0 Number of Channels 2 Export 1K Hz, 3.25V level standard reference square wave output Bandwidth 20MHz Maximum sampling rate 25M sps (single), 50M sps (dual channel) Vertical resolution 8 bit Voltage range 5V, can be extended to 50V through X10 probe,
extended to 500V through X100 probe (Optional) Noise size 25mV 500mV/div Stalls
10mV 200mV/div Stalls
8mV 100mV/div Stalls
4mV 50mV/div Stalls Trigger coupling AC (AC-coupled), DC (DC-coupled) Triggering conditions Trigger level + rising/falling-edge trigger Trigger Auto, Normal, and Single Trigger Input impedance 1M / 25pF Memory Depth 1K-2M Power <2 W Weight <400g Automatic measurement Maximum, minimum, peak-to-peak, frequency, average,
RMS, rise time, positive width, negative width, duty cycle Size 12 cm X 7.5 cm X 2.5 cm

WHAT’S IN THE PACKAGE

1 x SainSmart DDS120 Pro PC-Based USB Digital Storage Oscilloscope

1 x User’s Guide

2 x Oscilloscope probes (X1, X10)

1 x USB Cable

1 x CD (manual, software, etc.)
