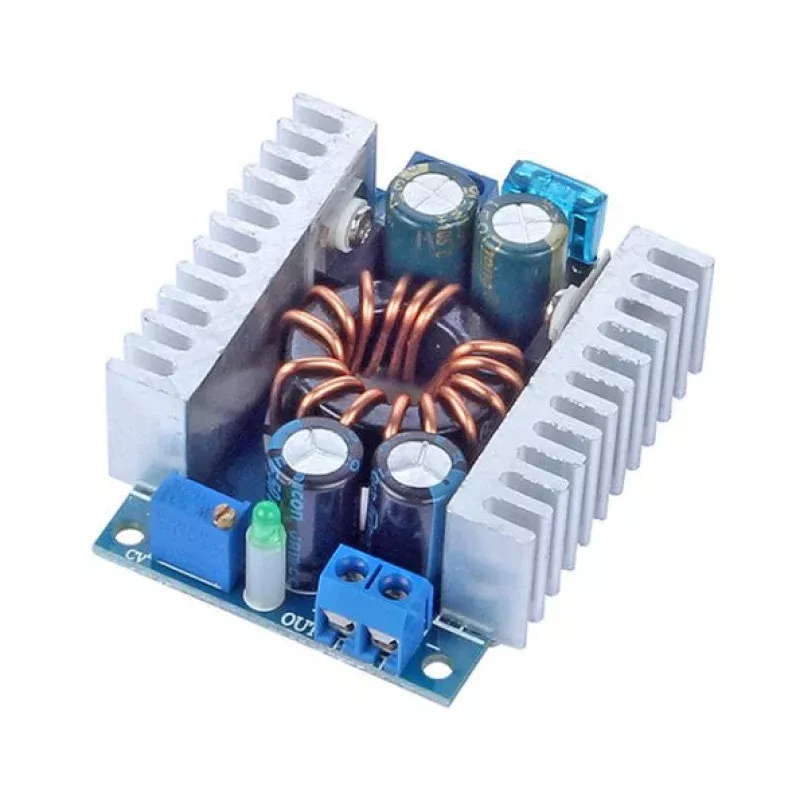

[Discontinued] DC DC Converter Boost 8-32V to 9-46V

SPECIFICATION

• Module Properties: Non-isolated step-up module (BOOST)
• Input Voltage: 8-32V
• Output Voltage: 9-46V (adjustable)
• Output Current: 8A (MAX)
  (Please enhance heat dissipation if more than 4A)
• Input Current: 16A (MAX)
  (Please enhance heat dissipation if more than 8A)
• Output Power: Natural cooling 90W (MAX), enhance heat dissipation 150W (MAX)
• Conversion Efficiency: 95% MAX
• Operating Temperature: Industrial (-40C to +85C)
  (If ambient temperature exceeds 40C, reduce power use or enhance heat dissipation)
• Full Load Temperature Rise: 45C
• No-load Current: 25mA typical
  (Higher voltage increases current)
• Voltage Regulation:0.5%
• Short Circuit Protection: None
  (Please install fuses and protection circuits at input port.)
• Input Reverse Polarity Protection: 15A

APPLICATION

• 1. DIY an adjustable output vehicle power supply. Connect the 12V input; output can be adjusted from 14-35V.
  (Output voltage cannot be less than the input voltage.)
• 2. Car laptop power supply: Connect to a 12V power supply and regulate output voltage as needed for your notebook.

WHAT’S IN THE PACKAGE

• 1 x DC-DC Converter Boost 8-32V to 9-46V 150W Step-Up Voltage Power Supply MAX 15A
