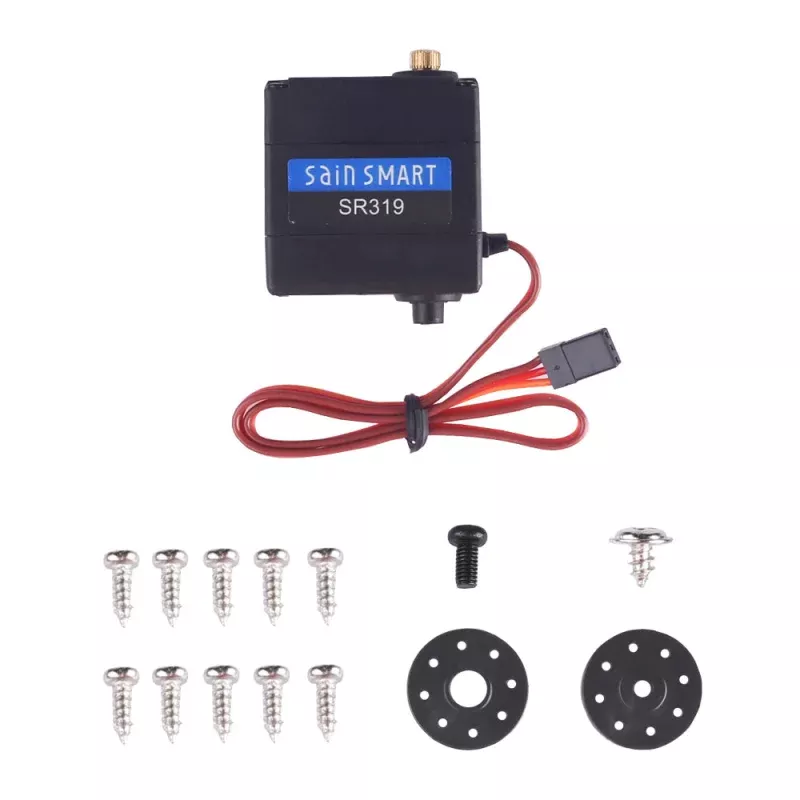

[Discontinued] All-Purpose Digital Servo, SR319

SPECIFICATION

Apply Environmental Condition:

Term

Parameter

Storage Temperature Range

-2060

Operating Temperature Range

-1050

Operating Voltage Range

5V7.4V

Electrical Specification (Function of the Performance):

Item

5V

7.4V

Operating speed (at no load)

0.14 sec/60

0.13sec/60

Running current (at no load)

80 mA

100 mA

Stall torque (at locked)

13.5 kg-cm,

15kg-cm

Stall current (at locked)

1.3A

1.5A

Idle current (at stopped)

4 mA

5 mA

Mechanical Specification:

Term

Parameter

Materials of the gear

Metal

Limit angle

360

Weight

64 1 g

Connector wire gauge

28 PVC

Connector wire length

3205 mm

Horn gear spline

25T/5.80

Horn type

Disc

Reduction ratio

3101

Control Specification:

Term

Parameter

Control system

Change the pulse width

operating frequency

50-330Hz

Operating travel

90 (when10002000 sec)

Neutral position

1500 sec

Dead band width

3 sec

Rotating direction

Counterclockwise (when 10002000 sec)

Pulse width range

5002500 sec

Maximum travel

360

WHAT’S IN THE PACKAGE

1x SR319 Digital Servo
