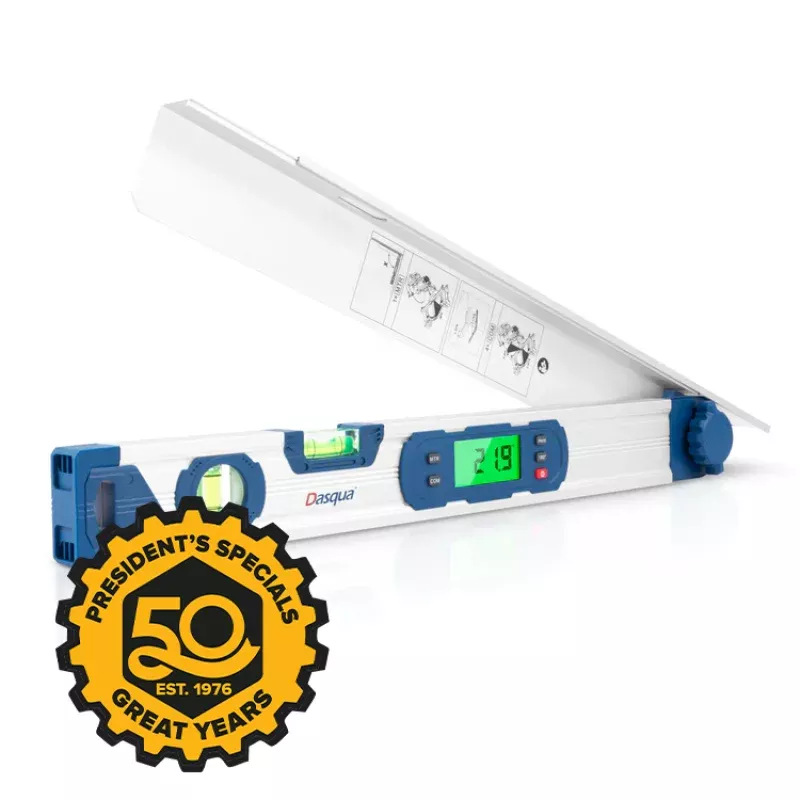

The DASQUA Digital Level & Protractor is a high-precision measuring tool designed for professional use in woodworking, metalworking, and construction. With a superior accuracy of 0.2, it outperforms standard models in the market that typically offer only 0.5 accuracy. This digital level integrates advanced measurement functions, allowing users to calculate simple and compound mitres effortlessly. Equipped with an LCD display featuring a backlight, it ensures clear readings even in dimly lit environments. The inclusion of a vertical and horizontal spirit level allows for manual levelling, making this tool a versatile addition to any workshop.
Key Features:
- High Accuracy: 0.2 measuring accuracy, superior to standard models.
- Digital Display: LCD screen with backlight for easy readability.
- Multiple Functions:
- 180 Function: Press the 180 button to calculate and display the supplementary angle.
- Mitre Angle Calculation (MTR Mode): Accurately calculates single mitre cuts.
- Compound Mitre Calculation (COM Mode): Determines both horizontal and vertical mitre angles.
- Spirit Levels: Integrated horizontal and vertical spirit levels for manual levelling and object alignment.
- Leg Extension: Provides additional reach and versatility.
- Zero Point Adjustment: Can be reset at any position for precise measurements.
- Durable Construction: Made with an aluminum base and a sturdy aluminum leg extension.
- Ergonomic Design: Includes a hanging hole for convenient storage.
- Portable & Secure: Comes with a pouch bag for easy transport and protection.
- Automatic Power-Off: Powers down after approximately 5 minutes of inactivity to conserve battery life.
- User-Friendly Interface: Operated with five silicone buttonsOn/Off, 180, Hold, MTR, and COM.
Specifications:
- Leg Length: 400 mm
- Measuring Range: 0 – 220
- Accuracy: 0.2
- Resolution: 0.1
- Angle Calculation Accuracy: 0.1
- Spirit Level Accuracy: 1.5 mm/m
- Screen: LCD with backlight
- Auto Power-Off: Approximately 5 minutes
- Material:
- Base: Aluminum
- Leg Extension: Aluminum
- Buttons: Silicone
- Material Thickness: 2.0 mm aluminum
- Weight: 0.50 kg (10%)
- Dimensions: 4254158 mm (LWH)
- Battery: 21.5V AA (LR6)
Comes With:
- Protective Pouch Bag for safe storage and transport.
- Two 1.5V AA (LR6) Batteries for immediate use.
- User Manual for easy setup and operation.
