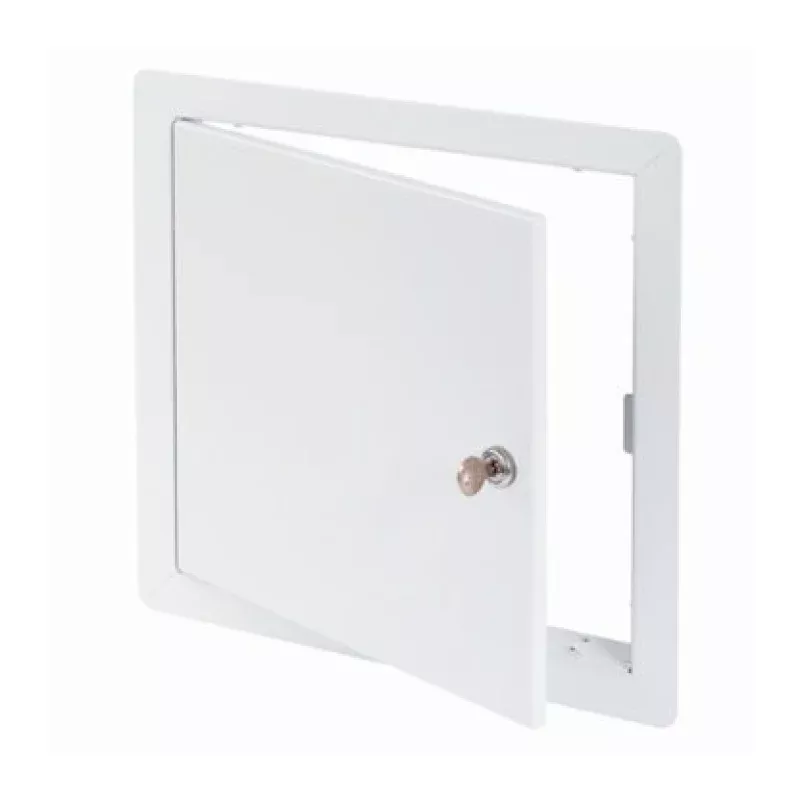

Cendrex AHD-10 Flush Universal Access Door With Exposed Flange, Pin Hinge, Keyed

Key-operated cylinder cam latch, pin hinge. Designed for quick and easy installation on non-rated walls and ceilings.The key-operated cam latch ensures a higher level of security.

• Material : 16-gauge cold rolled steel
• Hinge : Hot-rolled and stamped-steel pin hinge. Hinge location: Hinges must be located on the second dimension (height).
• Locking mechanism : Key-operated cylinder cam latch with two keys per lock
• Flange : 1″ exposed flange, made of cold rolled steel
• Frame : 1 1/2″ in depth, made of cold rolled steel
• Rough opening : Door sizes + 1/4 ” or + 6mm
• Finish : High quality white powder coat primer
• Packaging : Individually wrapped, 1 door per box

Dimensions

Dimensions (Inches) Dimensions (Millimeters) Weight (LBS) Weight (KG) Number of locks * 6 x 6 152 x 152 2.3 1.0 1 * 8 x 8 203 x 203 3.1 1.4 1 * 8 x 12 203 x 305 4.2 1.9 1 * 10 x 10 254 x 254 4.2 1.9 1 * 12 x 12 305 x 305 5.4 2.5 1 * 12 x 16 305 x 406 6.8 3.1 1 * 12 x 18 305 x 457 7.6 3.5 1 * 12 x 24 305 x 610 9.6 4.3 1 * 14 x 14 356 x 356 6.7 3.1 1 * 16 x 16 406 x 406 8.2 3.7 1 * 18 x 18 457 x 457 10 4.5 1 * 18 x 24 457 x 610 12.6 5.7 1 * 20 x 20 508 x 508 11.8 5.4 1 * 22 x 22 559 x 559 14.0 6.3 1 * 24 x 24 610 x 610 15.9 7.2 1 * All dimensions are written in the following order: Width X Height
