Product Overview

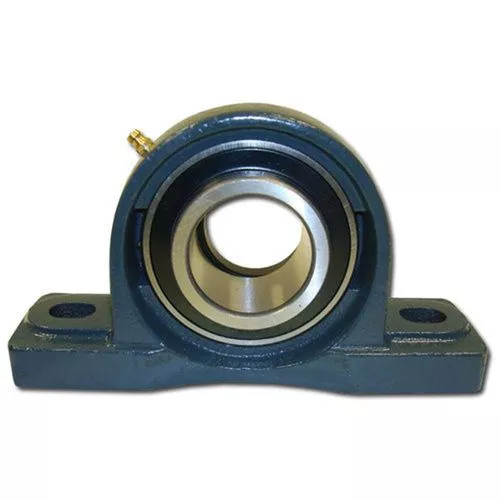

Pillow blocks are useful pieces of equipment that consist of a housing unit and bearing. The housing application may be bolted down to a structure so that it stays solid while the inner rotating process is occurring. Constructed from cast iron, this pillow block has excellent longevity. The dimensions of this heavy-duty pillow block bearing are as follows: the shaft size is 7/8 inches, the shaft height is 1.44 inches, the overall length is 5.51 inches, and the overall height is 2.74 inches. There are 2 bolt holes located on each side of the bearing, these measure 4.13 inches in distance from each other. Located near the top of the pillow block is a grease fitting to feed lubricant to the bearing.
Specifications:
- Pillow Block Bearing
- Construction: cast iron
- Shaft size: 7/8 in.
- Shaft height: 1.44 in.
- Overall length: 5.51 in.
- Overall height: 2.74 in.
- Bolt distance: 4.13 in.
- Comes with bearing
- Grease fitting
- Cylindrical bore with Eccentric locking collar included
