Product Overview

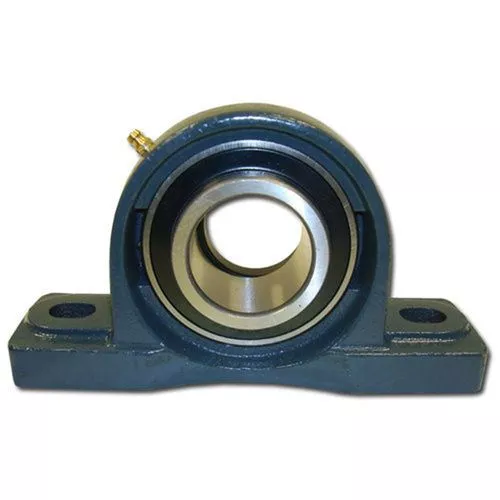

Pillow blocks are useful pieces of equipment that consist of a housing unit and bearing. The housing application may be bolted down to a structure so that it stays solid while the inner rotating process is occurring. Constructed from cast iron, this pillow block has excellent longevity. The dimensions of this heavy-duty pillow block bearing are as follows: the shaft size is 2-3/16 inches, the shaft height is 2.50 inches, the overall length is 8.63 inches, and the overall height is 3.86 inches. There are 2 bolt holes located on each side of the bearing, these measure 6.77 inches in distance from each other. Located near the top of the pillow block is a grease fitting to feed lubricant to the bearing.
Specifications:
- Pillow Block Bearing
- NAPK211-35 PWG 2-3/16-R
- Construction: cast iron
- Shaft size: 2-3/16 in.
- Shaft height: 25.0 in.
- Overall length: 8.63 in.
- Overall height: 4.90 in.
- Bolt distance: 6.77 in.
- Comes with bearing
- Grease fitting
- Cylindrical bore with Eccentric locking collar included
