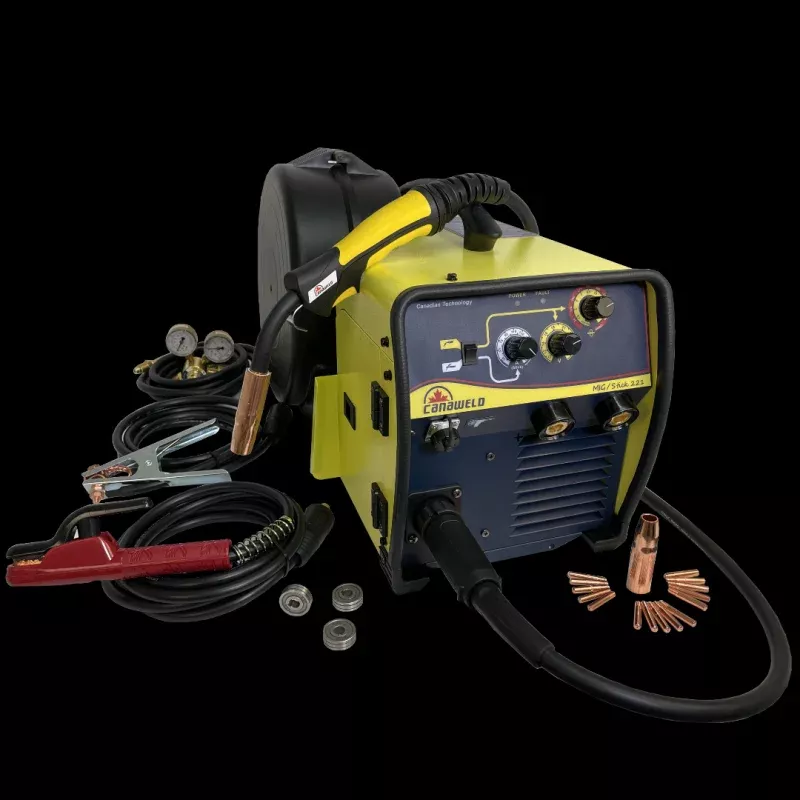

Canaweld MIG / Stick 221 Welding Machine

Canaweld MIG / Stick 221 Welding Machine

The MIG/STICK 221 is the most powerful welding machine in the Canaweld MIG/STICK series, is a powerful, lightweight, portable, and versatile MIG/Stick Ontario Made welding machine.

This machine can weld up to 3/8-inch steel in MIG or SMAW mode. With a very steady arc, it has the capability of working with 0.0230.040-inch MIG wire or up to 3/16-inch SMAW rods (please check the technical sheet for more details). Because of these features, MIG/Stick 221 is an excellent choice for light to medium duty welding operations in your garage, at home, or at your local auto body shop

The MIG/Stick 221 is capable of welding with Canawelds spool gun which ensures trouble-free Aluminum MIG welding.

Options:

• MIG Package – PLC7580152 MIG/Stick 221, Silver
• Aluminum Spool Gun Package – PLC7580153 MIG/Stick 221, Aluminum

Features:

• Wide range of welding amperage up to 220A
• High power output, 170A @ 100% Duty Cycle & 200A @ 35% Duty Cycle.
• Designed for extreme environments and tested in (104F/40C).
• Inverter power supply with excellent MIG and Stick welding qualities.
• Automatic compensation for main power fluctuations within20%.
• Capability to use of up to 165 feet (50 meters) of lead without power loss at the weld.
• High-quality metal double drive roll system for accurate and consistent wire feed, preventing bird nesting.
• Welds steel and aluminum up to 3/8 thick.
• Automatic regulation of the wire speed by using the motor voltage feedback to provide an exceptionally steady arc with a minimum splatter.
• Overheat prevention by using a fan and thermal protection.
• Built-in polarity changeover feature for most common gas and gasless wires.
• Metal face panel.
• Spool gun compatible.
• Both 8 and 12-inch (203 and 305 mm) Wire Spool Size.
• Comprehensive 4-Year Warranty.

Product Name Canaweld MIG/Stick 221 Welding Processes MIG (GMAW), Flux Core (FCAW), Stick (SMAW) Input Voltage 230V 1PH Input Input Current 230V: 27 – 37A Welding Output Amps (230V) MIG: 30 – 220A
Stick: 10 – 200A Output Current DC – CC/CV Spool Gun Ready – Canaweld 150A Spool Gun Dimensions 23.8 x 11 x 15.15 inch Weight 42 lb without spool Warranty 4 Year Comprehensive, serviced by Canaweld

What’s in the box?

• Canaweld 221 MIG-Stick welding power source
• Ground Clamp and Stick Electrode Holder (10 ft. Length)
• MIG Torch and Consumable Set (10 ft. Length, Tweco Consumables)
• Argon/Co2 MIG & TIG Regulator with 10 ft. Gas Hose
• Drive Rolls: .030″-.040″ Solid Wire (V Groove), .030-.035″ Flux Cored Wire (Knurled)

Aluminum package also includes:

• Canaweld Spool gun and Tweco style consumables kit

Full Product Data Sheet | MIG Torch Consumables
