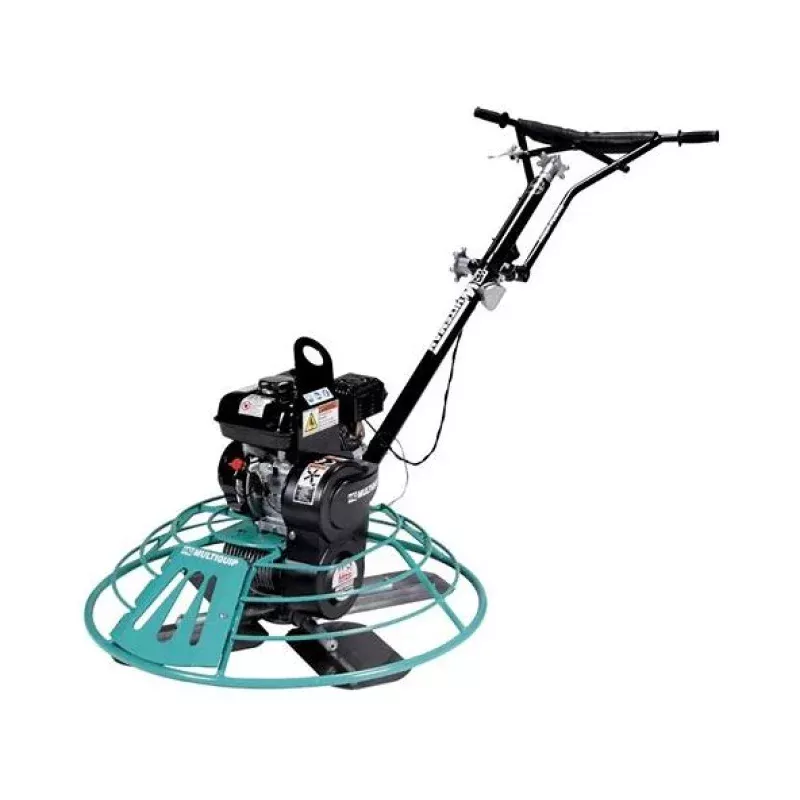

BH90C InstaClutch Walk-Behind Trowel
4-blade, 46″, Honda GX 270, 8.5, Min 60-130 Max RPM blade speed.
- 46-inch (1170mm)guard ring diameter.
- Advanced friction clutch stops the unit within a quarter of a turn if the operator releases the handle at full RPM
- Eliminates need to throttle engine down during momentary work stoppages
- Trowel covered by standard MQ 1-year limited warranty
- Front access panel provides quick access to trowel arms and blades
- Center mount lifting bail included
- Spider and thrust collar design simplifies routine maintenance
- Gearbox features top quality components & large oil capacity for years of trouble free performance
- QuickPitch (QXHC) or Standard handles (SXHC)
Dimensions & Weights
Notice: Features and equipment specifications are subject to change without notice.
Options
Recommended Blades for 46″ B series WBT’s
-
C464 BLADE COMBO 8 x 18 46 & 48 TROWEL -
C10464 BLADE COMBO ENDURO 8 x 18 46 /48 TROWEL -
CL444F BLADE FLOAT 10 x 18 46 /48 TROWEL -
F400 BLADE FINISH 6 x 18 46 /48 TROWEL -
F10400 BLADE FINISH ENDURO 6 x 18 46 /48 TROW -
QC1873 BLADE COMBO 8 x 18 QC 46 /48 TROWEL -
QC10873 BLADE COMBO ENDURO QC 8×18 46 /48 TROWEL -
QF10874 BLADE FINISH ENDURO QC 6×18 46 /48 TRWL -
QF1874 BLADE FINISH QC 6 x 18 46 /48 TROWEL
Quick Change Mounting Bar/Snap for QC Blades
-
QB1856 BAR MOUNTING QC BLADE 46 / 48 TROWEL -
QS1869 BLADE SNAP PIN FOR QC BLADE(2 PER BLADE)
Poly Blades
-
F400PL BLADE FINISH POLY 6 x 18 46 /48 TROWEL
Recommended Float Pansfor 46″ B series WBT’s
-
12271 PAN FLOAT 46 4 BLADE FLAT ALL -
11017W PAN FLOAT 46 4 BLADE SF ROT
