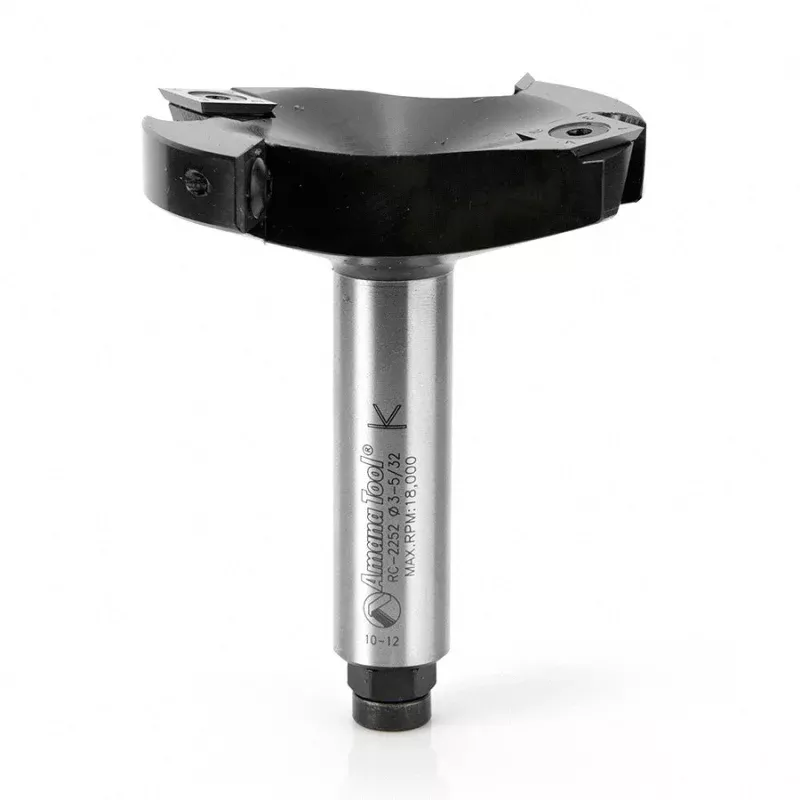

RC-2252, Amana CNC Insert Solid Carbide Spoilboard Surfacing & Rabbeting 2+2 Flute Design 3-5/32 Dia x 15/32 x 3/4 Shank Router Bit
Features unique 2+2 insert knife design that contains two cutting flutes and two up-shear scorers, which provide a smoother finish at the bottom of the cut than traditional two-knife style router bits. A great tool for fast removal of materials over a large surface area. The scorer leaves an improved finish at the bottom of the cut.
Designed for planing & rabbeting the following materials:
- Balsa Core
- Hardwood/Softwood
- Chipboard
- MDF*
- Fiberboard*
- HDF/LDF*
- *Use optional MDF knives AMA-12*
Featuring:
- 2+2 mini design for tighter corners
- 4-sided solid carbide insert knives
- Exclusive carbide grade for highest quality of cut
- Maximum cutting efficiency
- Faster material removal process
- Longest tool life
Specifications:
- Tool No. RC-2252
- (D) Diameter 3-5/32 (80mm)
- (B) Cutting Height 12mm (15/32)
- (d) Shank 3/4
- Overall Length (L) 3-35/64
- Max RPM 18,000
- Feed Rate IPM 140″/min – 425″/min
