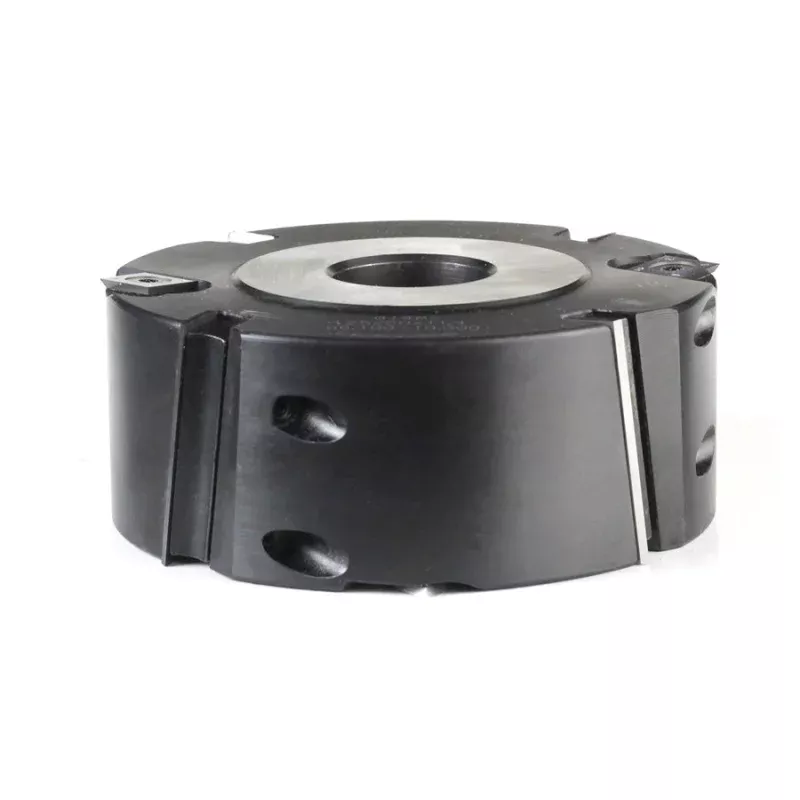

Amana Tool Straight Cutter 1-1/4 in Bore 61482

Amana 61482 Insert Carbide Shear Rabbeting 125mm (5) Dia x 50mm (2) x 1-1/4 Bore Steel

Cutterhead bodies available in hard wearing aluminum or steel, complete with shear angle tungsten carbide knives and scorer. Suitable for producing various thickness rabbets in softwood, hardwood and man-made boards (with or without coating) on a spindle molder. Shear angle reduces tear out and improves quality of cut.

Replacement Parts

Solid Carbide Knife Scorer (4) | Straight Cutter (4) Wedge Torx Screw Hex Screw Torx Key Hex Key HCK-70 ICK-50 WB-21 67154 67301 5015 5020

Specifications:

(D) Diameter 125mm (5) (d) Bore 1-1/4 (B) Cutting Height 50mm (2) Max. t 27mm (1-1/16) RPM 6,100-10,300 Teeth 4+4 Cutter Body Steel Replacement Knives ICK-50 (4) & HCK-70 (4)
