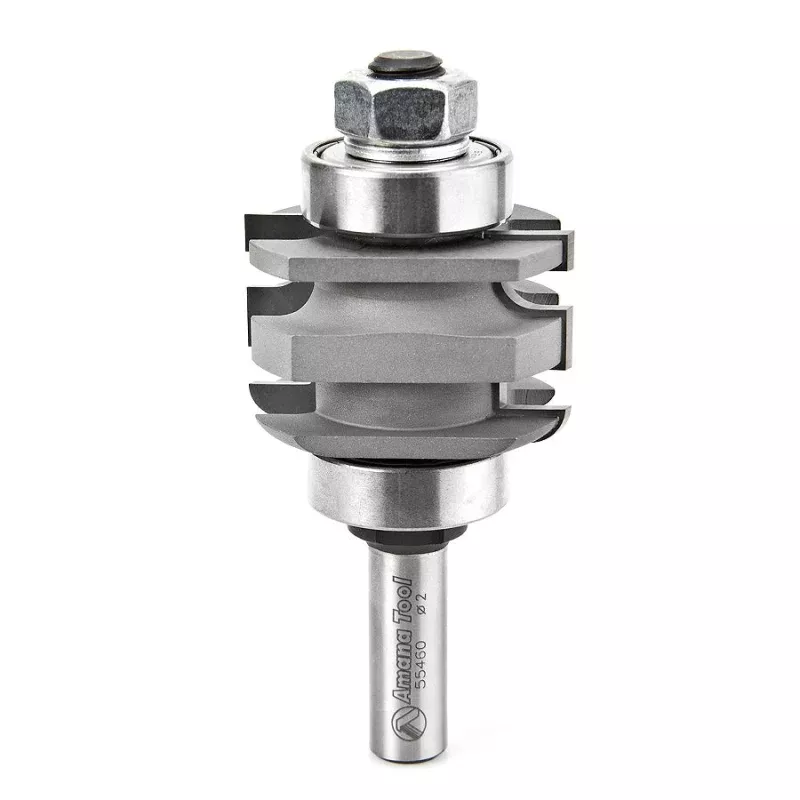

Amana Tool One Piece Concave Stile & Rail 55460

55460, Amana Carbide Tipped One Piece Concave Stile & Rail 2″ Dia x 1-9/32″ x 7/32″ Radius x 1/2″ Shank

These one piece stile & rail bits are an easy and effective technique for creating cabinet door frames. You simply adjust the height of the bit accordingly in the router table to cut the profile cut (with bit lowered in the table) and the cope cut (with bit raised in the table).

Specifications:

Diameter (D) 2 Radius (R) 7/32 Cutting Height (B) 1-9/32 Shank (d) 1/2 Overall Length (L) 4-3/32 B1 15/64 Replacement Bearing 47744 Flutes 2 D1 1-1/4 C 3/8
