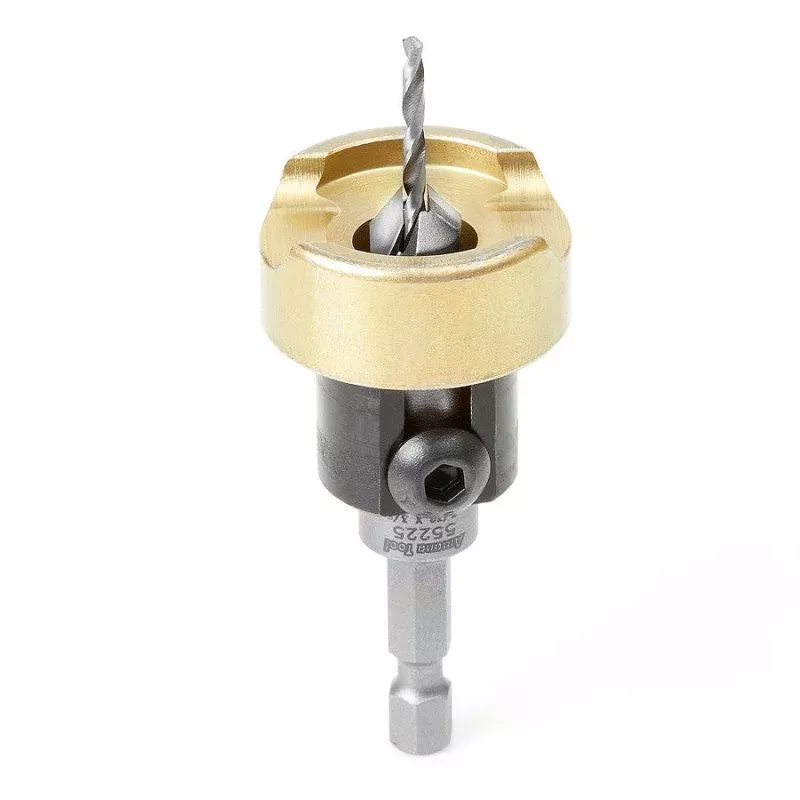

55228, Amana Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing, 3/8 Dia x 9/64 Drill Dia x 1/4 Inch Quick Release Hex Shank
Features an adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces. The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop.
Quick release 1/4″ hex shank with slow spiral, HSSM2 fully ground drill bit included.
Specifications:
- Tool No. 55228
- (a) Angle 49
- (B) Cutting Height 3/64-3/8
- (D) Diameter 3/8
- (d) Shank 1/4
- Overall Length (L) 2-5/8
- Drill Din 1897
- Use with Tool 55222
- D1 9/64
- Replacement Drill 630-228
- Replacement Countersink 55273
