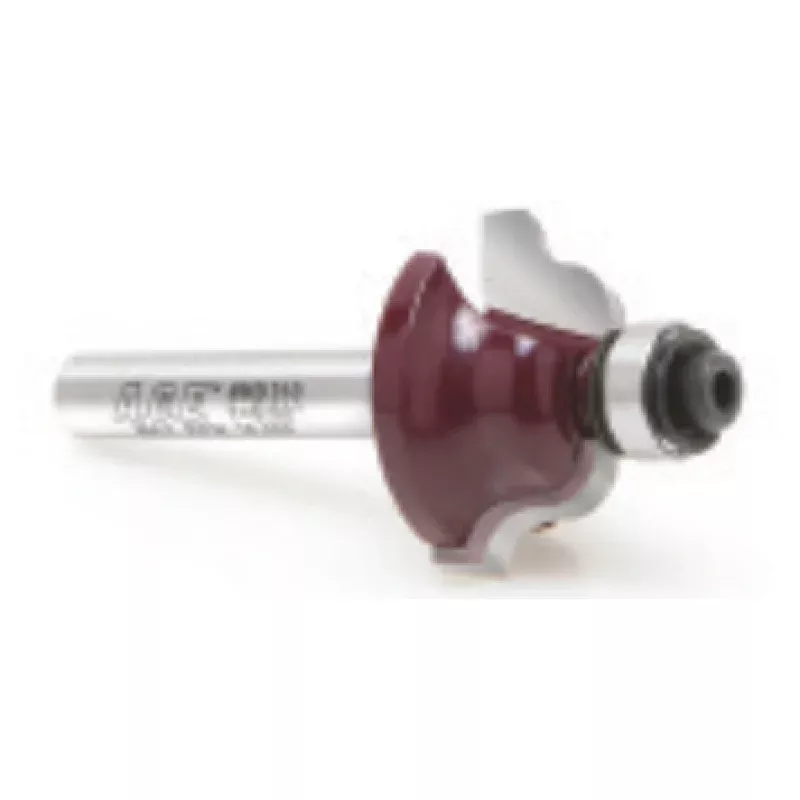

MD310, A.G.E. Carbide Tipped Roman Ogee, 2-Flute, 1 Dia x 15/32 x 1/4 Shank
The Roman ogee bit, which has a convex curve coming off the bearing, produces the reverse of the ogee. The curve starts at the top as a concave, and fairs down into a convex curve.
Specifications:
- Tool No. MD310
- Diameter (D) 1″
- Cutting Height (B) 15/32″
- Radius 5/32″
- Shank (d) 1/4″
- Overall Length (L) 2-5/32″
- Flutes 2
- Replacement bearing use 47701
