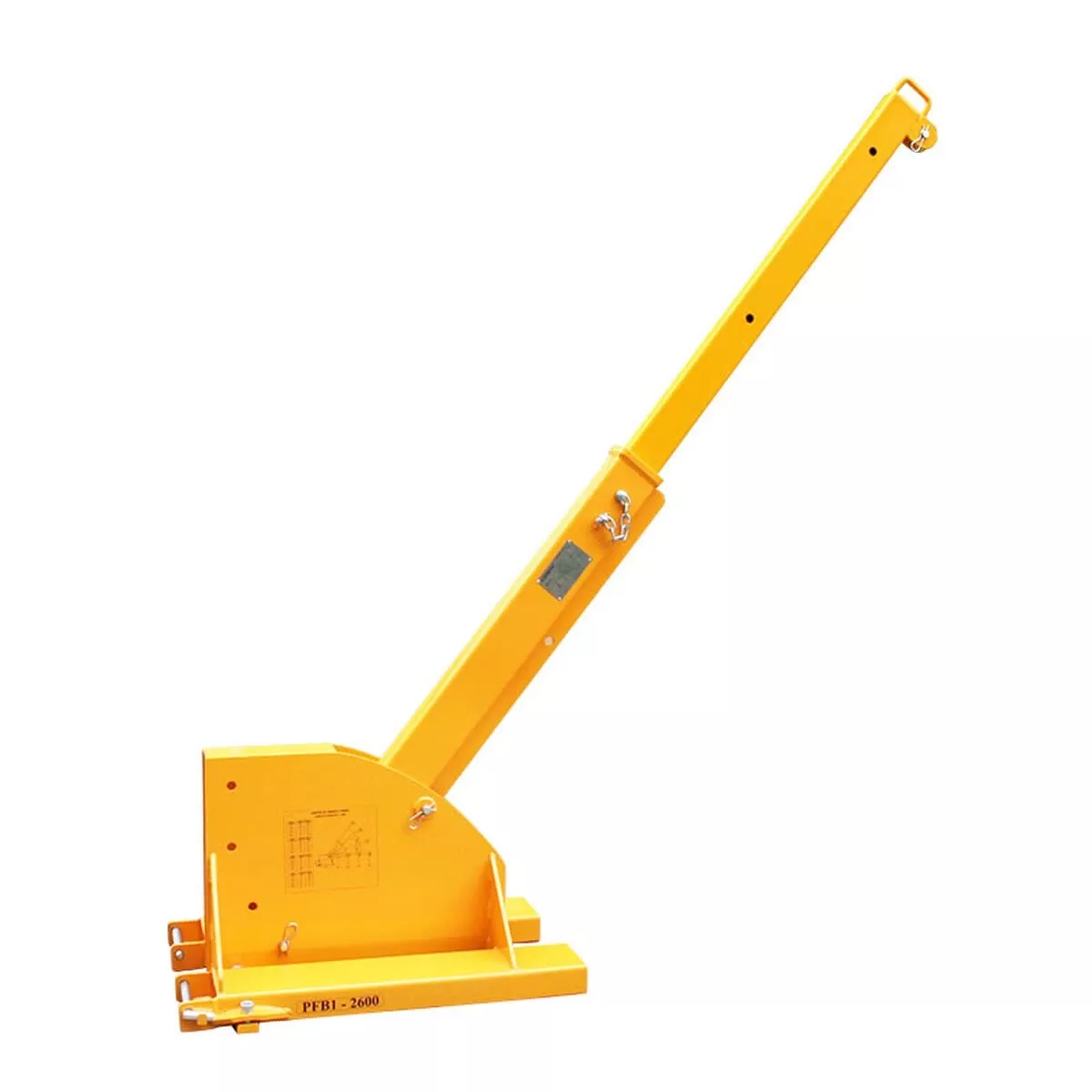

Aardwolf Pivot Forklift Boom PFB1-2600
The Pivot Boom model PFB1-2600 is adjustable for height and length. The tilt facility allows extra height to compensate for the hook and sling length lost when lifting with a jib attachment.
Features
- The boom extension is designed so that it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
Specifications
| Metric(mm-kg) | Imperial(inch-lbs) | |
| Manual telescope | 1500 – 2600 | 59 – 102.4 |
| Increment | 2 – 550 | 0.07 – 21.7 |
| Slip onto fork designed with fork pockets | 154×58 | 6.1×2.3 |
| Fork pockets | 366 | 14.4 |
| Working load limit | Retracted: 1500 Extended: 500 |
3307 1102 |
| Net weight | 150.5 | 332 |
| Gross weight | 151 | 333 |
| Packaging dimension | 1750x620x580 | 68.9×24.4×22.8 |
Note: Boom lift capacities depend completely on the capacity of the forklift being used
