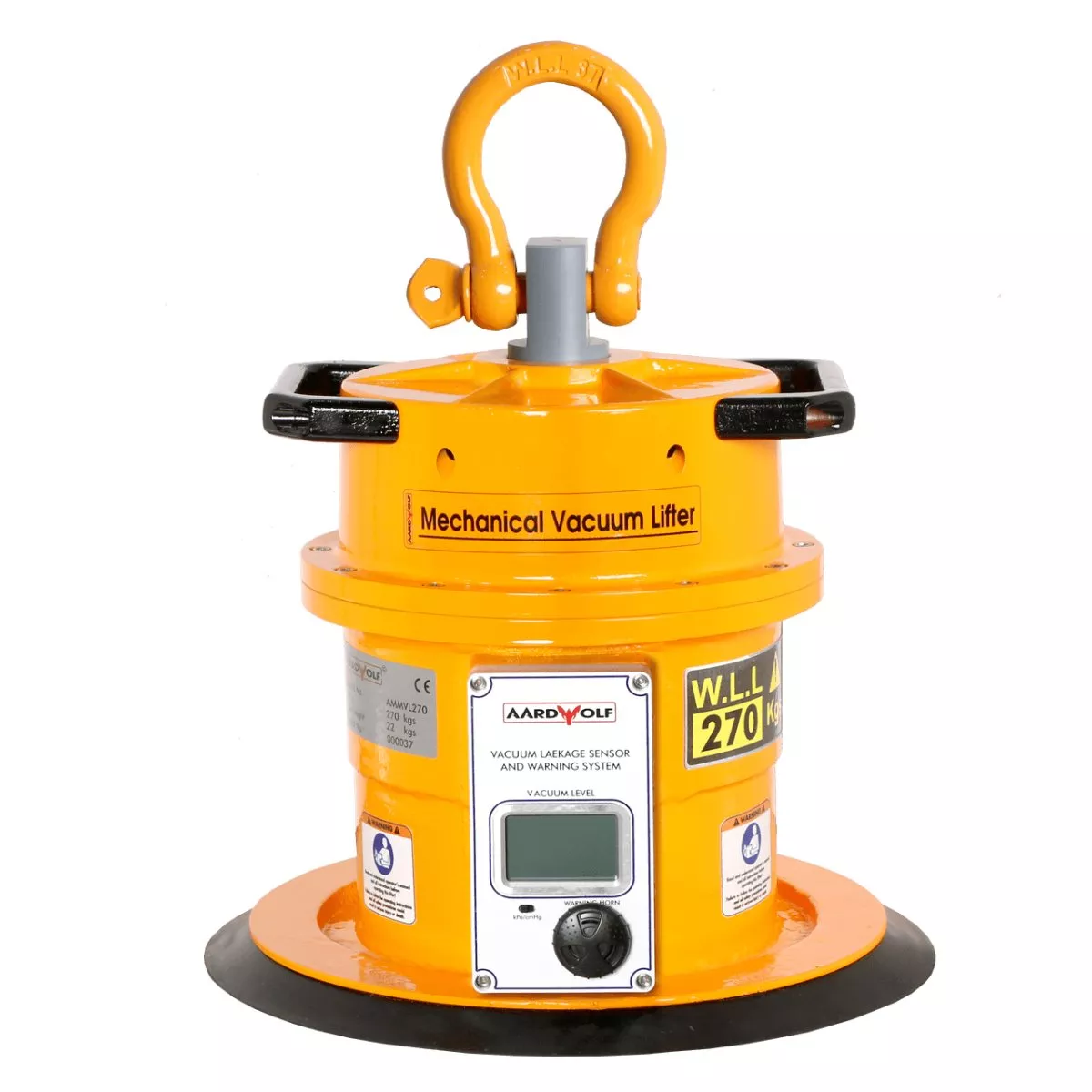

Material Handling Equipment for moving stone, all types of metals, plastics, and fiberglass
No power source required. Ideal for the horizontal handling of non-porous sheet and plate material such as diamond sawn or polished granite, polished engineered stone, all types of metals, plastics and fiberglass. An automatic self-cycling valve located in the bottom of the piston controls the vacuum grip-and-release cycle.
Features
- Self-powered and self-cycling
- Audio alarm system powered by a non-rechargeable 9V battery
- Immediately ready for operation
- Low maintenance
- Aluminium construction
- Lightweight
Specifications
| Metric (mm-kg) |
Imperial (inch-lb) |
|
| Number of pads | 1 | – |
| Pad diameter | Seal to seal: 300 | 11.8 |
| Working load limit | 270 | 595 |
| Net weight | 22 | 49 |
| Gross weight | 27 | 59.5 |
| Packaging dimension | 390x390x430 | 15.3×15.3×17 |
